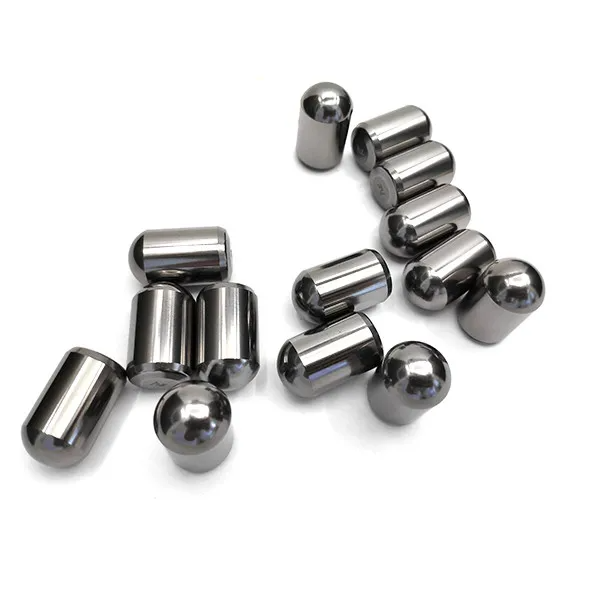

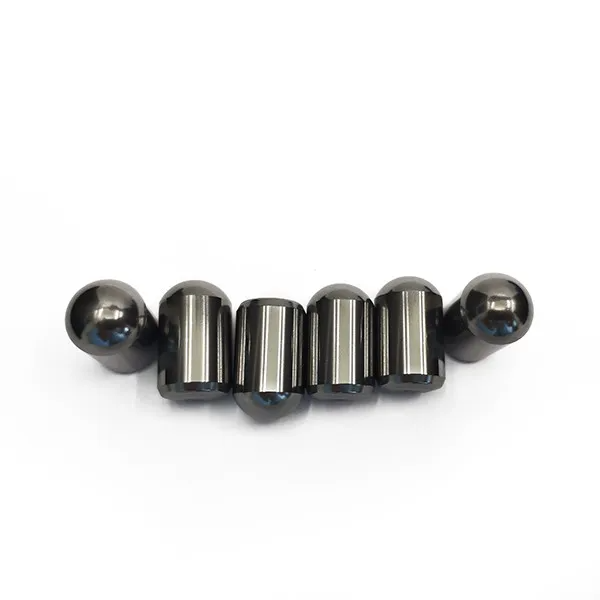

Various dimensions and shapes of tungsten carbide button are available here, suitable for soft, medium hard, hard,
super hard rock formations based on different grades, very good finishing, standard of the tolerance for diameter is +0/-0.005mm.
1.we choose 100% raw material .
2.You can choose many kinds of grades for your need.
3.we have professional advanced production and testing equipments ensure high quality products.
4.Precision Ground and polished
5.High wear resistance,high hardness and impact toughness

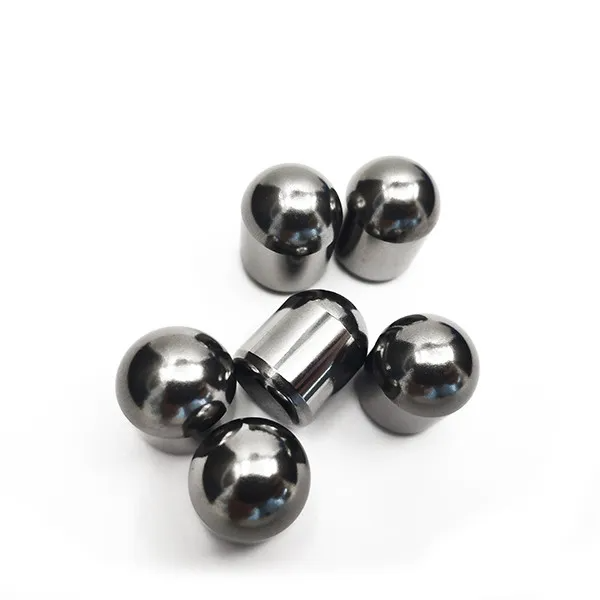

Dome Button
| 型号 Type | 尺寸 Dimension | |||
| D | H | e | R | |
| XY0810 | 8 | 10 | 1.5 | 4.2 |
| XY0812 | 8 | 12 | 1.5 | 4.2 |
| XY1012 | 10 | 12 | 1.5 | 5.2 |
| XY1015 | 10 | 14 | 1.5 | 5.2 |
| XY1215 | 12 | 16 | 1.5 | 6.2 |
| XY1220 | 12.3 | 20 | 1.5 | 6.3 |
| XY1315 | 13 | 15.5 | 1.5 | 6.7 |
| XY1420A | 13.7 | 19 | 2.0 | 7.02 |
| XY1420B | 13.7 | 22 | 2.0 | 7.02 |
| XY1420C | 14.3 | 22 | 2.0 | 7.33 |
| XY1620 | 16.7 | 21 | 2.0 | 8.55 |
| XY1625A | 16.7 | 25 | 2.0 | 8.55 |
| XY1625B | 16.7 | 28 | 2.0 | 8.55 |
| XY1825 | 18 | 27 | 2.0 | 9.2 |
| XY2030 | 20 | 30 | 2.0 | 10.2 |
| XY2540 | 25 | 40 | 2.0 | 12.7 |
We produce and research medium and high-grade tungsten carbide products with rich technology strength and integrating with new test and producing equipments, guided by excellent technologists and supervisors, we specializes in producing tungsten carbide buttons, tungsten carbide wear parts for oil-field and coal –field machinery, saw tips and other non-standard products. Our products are sold very well home and abroad with high reputation.
Contact: Ms. Carol
Phone: +86-731-28632688
E-mail: sales@dlcarbide.com
Add: Jinshan Road（Jinshan Technology Industrial Park）, Hetang District, Zhuzhou City, Hunan Province, China
