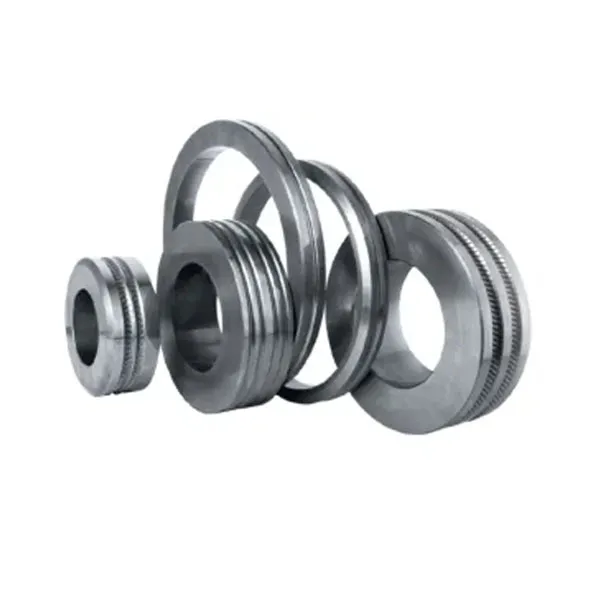

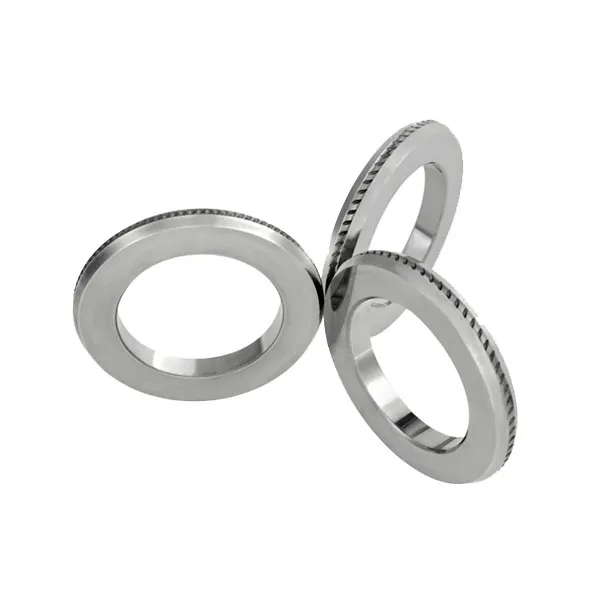

Factory Customized Tungsten Carbide Profiling Rollers

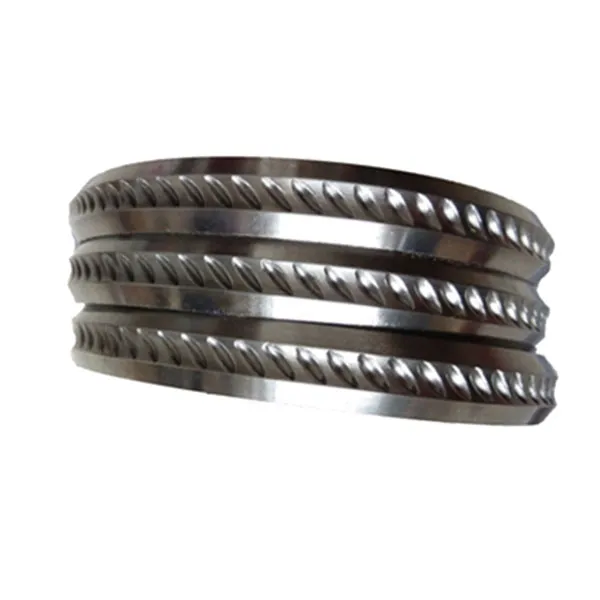

Tungsten carbide profiling rollers, also called tungsten carbide ribbing rollers, used to produce ribbed wire for the construction field.

Material Grade Specification of carbide rolls
Grade	WC Content %	Co Content %	TRS N/mm2	Density g/cm3	Hardness HRA
YG15	85	15	≥2020	13.9-14.1	≥86
YGH30	85	15	≥2700	14.02	≥84.9

format_webp (3).png

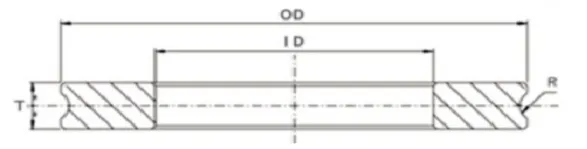

Standard tungsten carbide roll dimension
WIRE RANGE Ø	OUTSIDE Ø mm	INSIDE Ø mm	THICKNESS mm(T)
4-8.5	123	82	15
9-12	123	82	20
4-8.5	125	82	15
9-12	125	82	20
4-8.5	140	90	15
9-12	140	90	20
4-8.5	150	90	15
9-12	150	90	20

Reduction tables for producing smooth wire:

format_webp (4).png

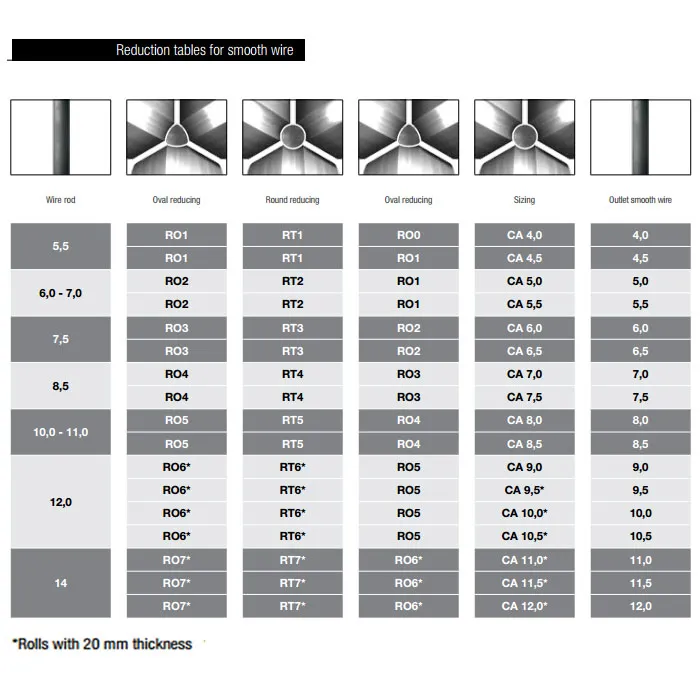

Reduction tables for producing smooth wire:
format_webp (5).png
