Planetary thread rolling dies are used for making self tapping nails, screws and bolts.
Planetary Thread Rolling Dies For Rotary Planetary Machines
Planetary thread rolling dies are used for making self tapping nails, screws and bolts. so there are planetary nail thread rolling dies and planetary bolt thread roll dies.
SPECIFICATIONS

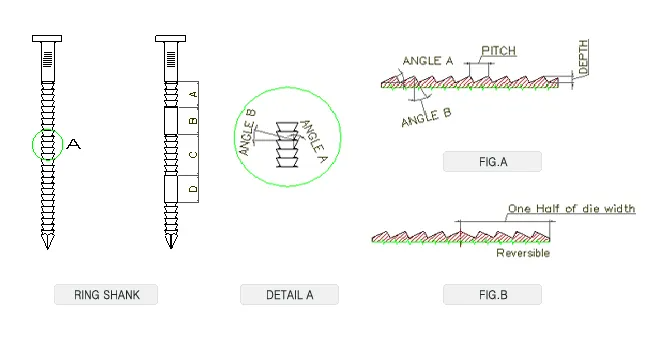

RING SHANK
| Standard Forms | |||||
| FORM # | THD/IN | PITCH | ANGLE A | ANGLE B | DEPTH |
| 1200 | 12 | 0.0833 | 30° | 20° | 0.031 |
| 1400 | 14 | 0.0714 | 30° | 20° | 0.027 |
| 1600 | 16 | 0.0625 | 30° | 20° | 0.023 |
| 1800 | 18 | 0.0555 | 30° | 20° | 0.02 |
| 2000 | 20 | 0.05 | 30° | 20° | 0.018 |
| 2200 | 22 | 0.045 | 30° | 20° | 0.017 |
| 2400 | 24 | 0.0416 | 30° | 20° | 0.015 |
| 2500 | 25 | 0.04 | 30° | 20° | 0.013 |
| 2800 | 28 | 0.0357 | 30° | 20° | 0.012 |
| 3200 | 32 | 0.0312 | 30° | 20° | 0.011 |

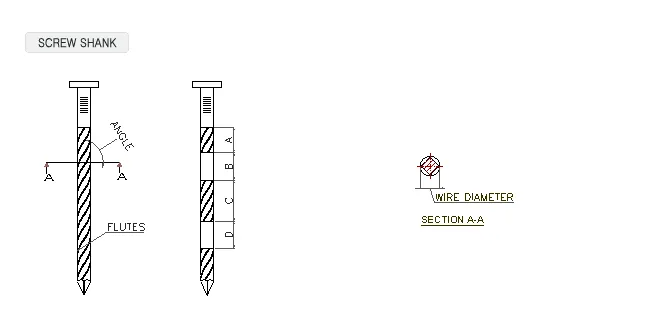

SCREW SHANK
| Standard Forms | ||
| 60° | 67° | 75° |
| 60-3-083 | 67-4-083 | 75-4-083 |
| 60-4-096 | 67-4-099 | 75-4-099 |
| 60-4-105 | 67-4-113 | 75-4-113 |
| 60-4-113 | 67-4-120 | 75-4-120 |
| 60-5-120 | 67-4-135 | 75-4-131 |
| 60-5-131 | 67-5-099 | 75-4-148 |
| 60-5-150 | 67-5-113 | 75-5-099 |
| 67-5-120 | 75-5-120 | |
| 67-5-131 | 75-5-128 | |
| 67-5-148 | 75-5-135 | |

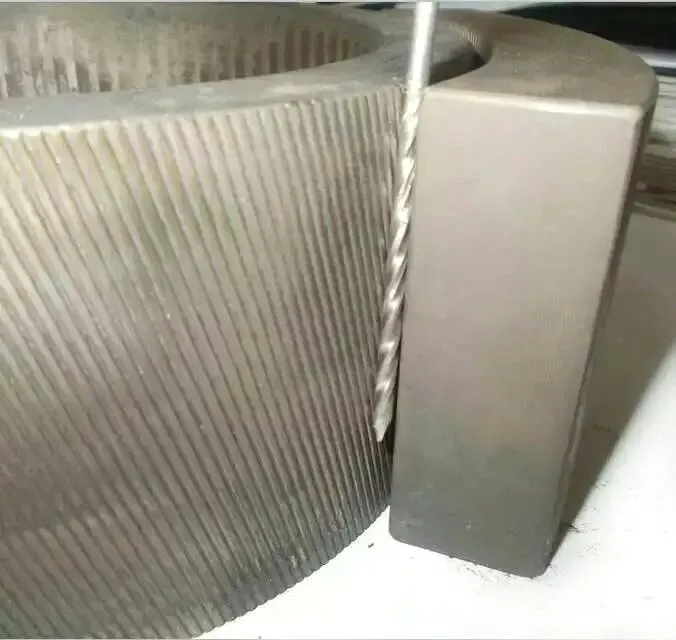

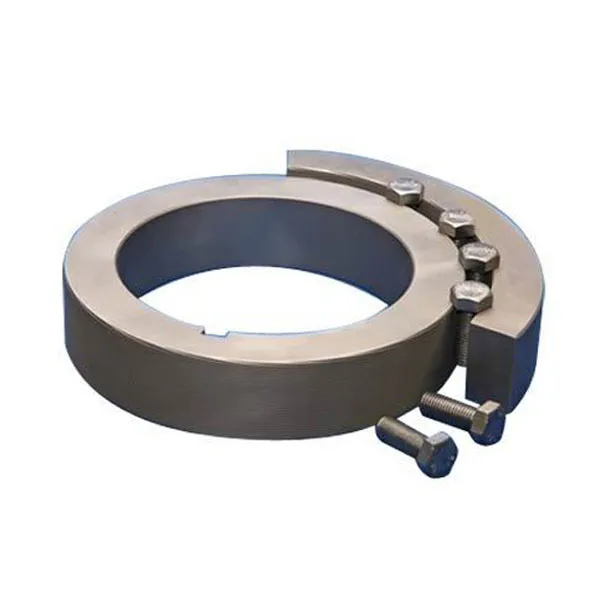

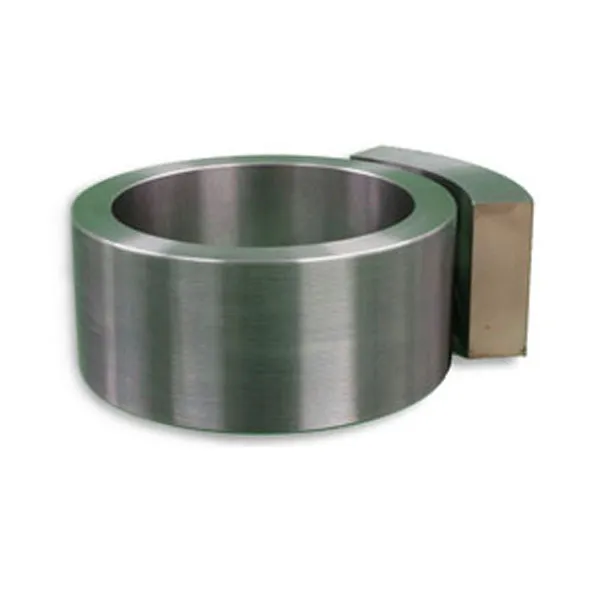

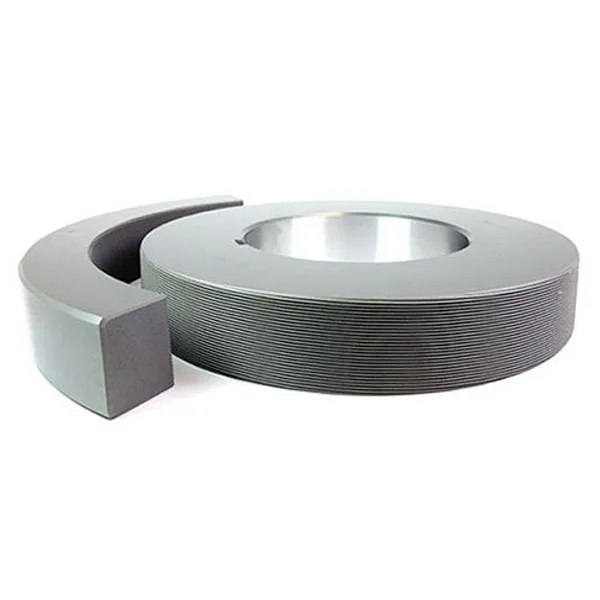

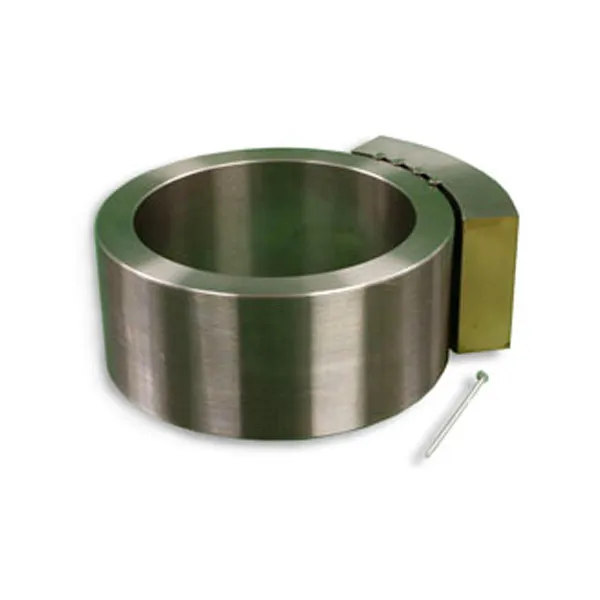

Planetary thread rolling dies make up of a ring and the shoe, for some machine a set planetary thread rolling dies including 1 ring and 1 shoe( the segment ); but some other may also need 1 ring match 3-4 shoes, its depending on the machine model.
Planetary thread rolling die could made from steel material (Cr12MoV) and tungsten carbide, surely the tungsten carbide material cost much higher than steel material, it's depends on your budgets. Max Carbide could supply both materials.

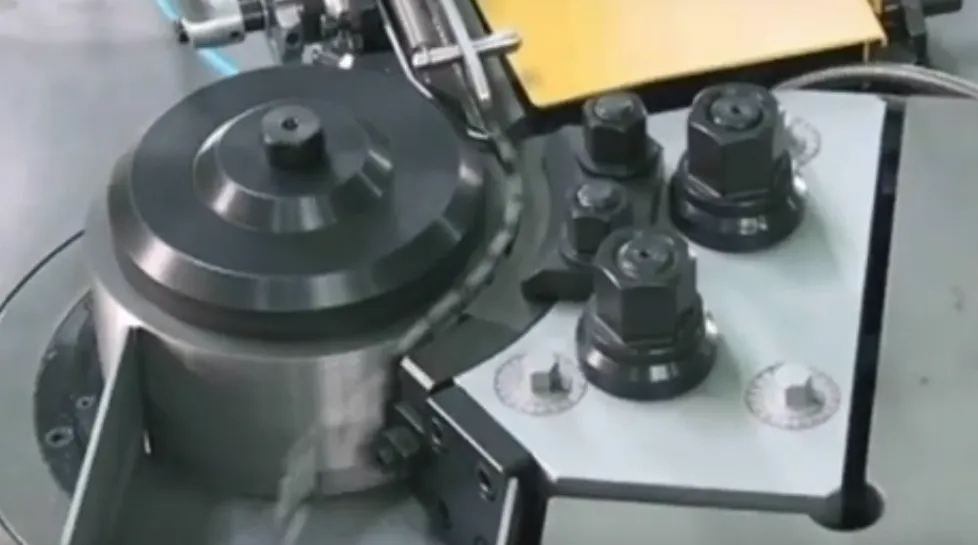

Below is a picture of planetary thread rolling dies rolling nails:

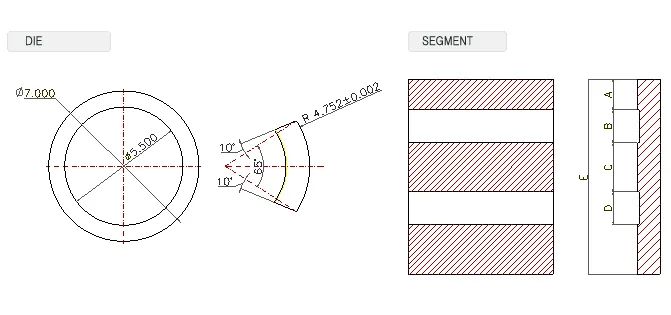

The planetary thread rolling dies we produce under your details drawing too.
