Item No.: 029

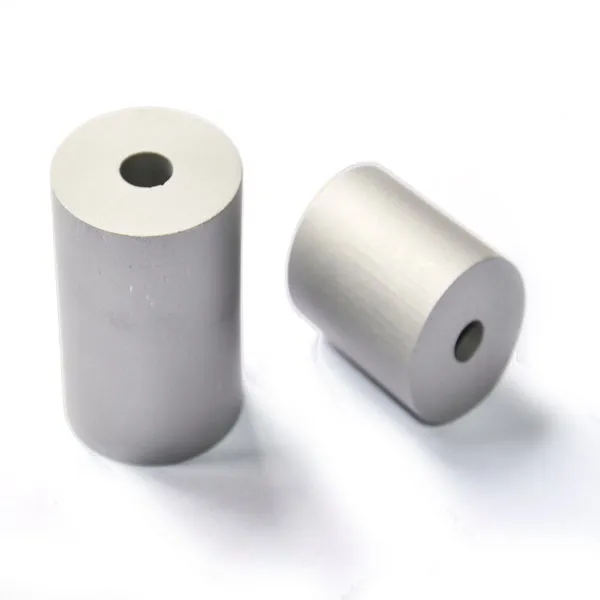

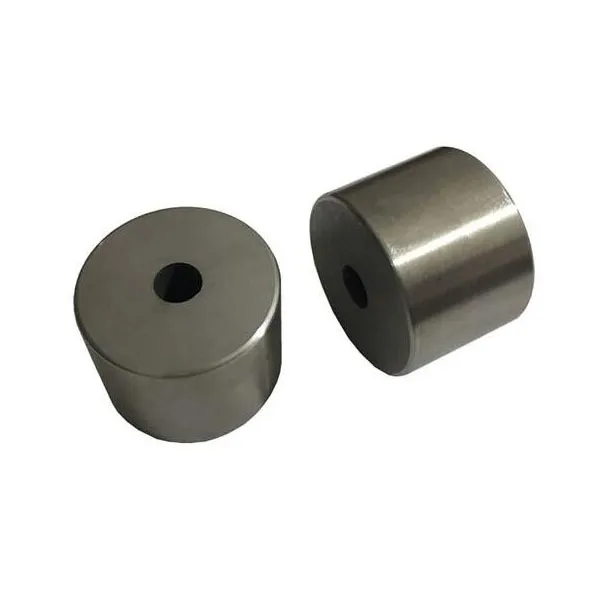

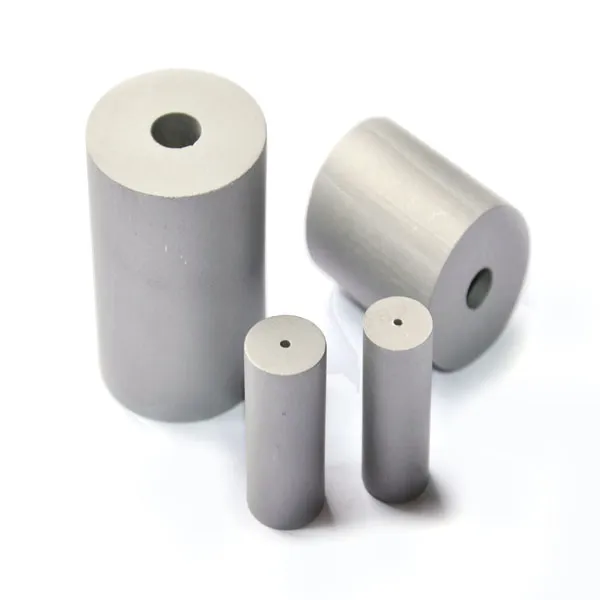

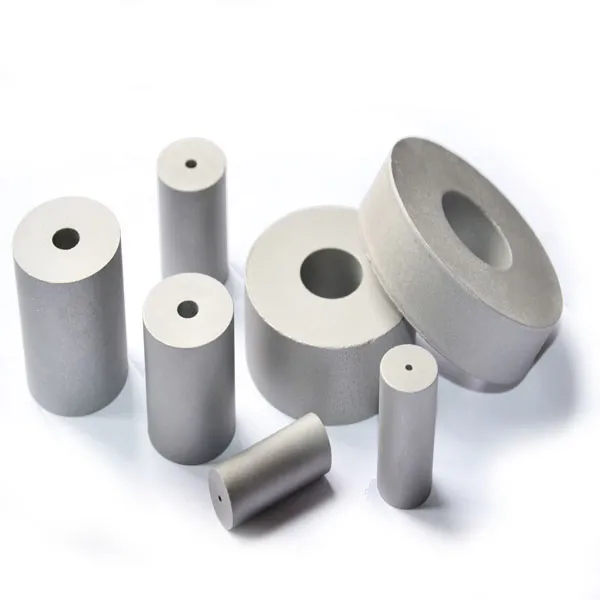

Tungsten carbide cold stamping dies are applied for making cold heading and cold punch, cold mold for production of standard parts, bearing, tool and other industries; warheads and shells of stamping dies.
Tungsten carbide cold stamping dies
Size specifications:
Unit:mm
| D(mm) | tolerance | d(mm) | tolerance | H(mm) |
| 8 | 0.3-0.5 | ≤2.0 | 0.1-0.15 | ≤16 |
| 10 | 0.3-0.5 | ≤5.0 | 0.1-0.15 | ≤20 |
| 12 | 0.3-0.5 | ≤2.5 | 0.1-0.15 | ≤24 |
| 13 | 0.3-0.5 | ≤9.7 | 0.1-0.15 | ≤26 |
| 15 | 0.3-0.5 | ≤3.5 | 0.1-0.15 | ≤30 |
| 16 | 0.3-0.5 | ≤8.0 | 0.1-0.15 | ≤32 |
| 19 | 0.3-0.5 | ≤3.0 | 0.1-0.15 | ≤38 |
| 20 | 0.3-0.5 | ≤5.2 | 0.1-0.15 | ≤40 |
| 21 | 0.3-0.5 | ≤4.0 | 0.1-0.15 | ≤42 |
| 22 | 0.3-0.5 | ≤8.4 | 0.1-0.15 | ≤44 |
| 23 | 0.3-0.5 | ≤3.5 | 0.1-0.15 | ≤44 |
| 25 | 0.3-0.5 | ≤18.6 | 0.1-0.15 | ≤50 |
| 26 | 0.3-0.5 | 4.8 | 0.1-0.15 | ≤52 |
| 28 | 0.3-0.5 | 7.0/17.8 | 0.1-0.15 | ≤56 |
| 30 | 0.3-0.5 | ≤23 | 0.1-0.15 | ≤60 |
| 32 | 0.3-0.5 | 10 | 0.1-0.15 | ≤64 |
| 35 | 0.3-0.5 | ≤18.5 | 0.1-0.15 | ≤70 |
| 36 | 0.3-0.5 | 10 | 0.1-0.15 | ≤72 |
| 40 | 0.3-0.5 | ≤15.8 | 0.1-0.15 | ≤80 |
| 42 | 0.3-0.5 | 10.4/17.4 | 0.1-0.15 | ≤84 |
| 45 | 0.3-0.5 | ≤23.2 | 0.1-0.15 | ≤90 |
| 48 | 0.3-0.5 | ≤29.4 | 0.1-0.15 | ≤96 |
| 50 | 0.3-0.5 | ≤22.7 | 0.1-0.15 | ≤100 |
| 52 | 0.3-0.5 | 18.0/12.0 | 0.1-0.15 | ≤104 |
| 54 | 0.3-0.5 | 18 | 0.1-0.15 | ≤108 |
| 55 | 0.3-0.5 | ≤28.3 | 0.1-0.15 | ≤110 |
| 60 | 0.3-0.5 | ≤31.5 | 0.1-0.15 | ≤120 |
| 62 | 0.3-0.5 | 18 | 0.1-0.15 | ≤124 |
| 64 | 0.3-0.5 | 18 | 0.1-0.15 | ≤128 |
| 65 | 0.3-0.5 | ≤34.6 | 0.1-0.15 | ≤130 |
| 70 | 0.3-0.5 | ≤55.0 | 0.1-0.15 | ≤140 |
| 75 | 0.3-0.5 | ≤45.0 | 0.1-0.15 | ≤150 |
| 85 | 0.3-0.5 | ≤22.0 | 0.1-0.15 | ≤170 |
Other sizes could be produced under your drawing.
