Max Carbide produce tungsten carbide shaft seal ring with high quality materials, carbide shaft seal has complicated shapes, high accuracy, stable mechanic properties.
It must have high wear and corrosion resistance properties.

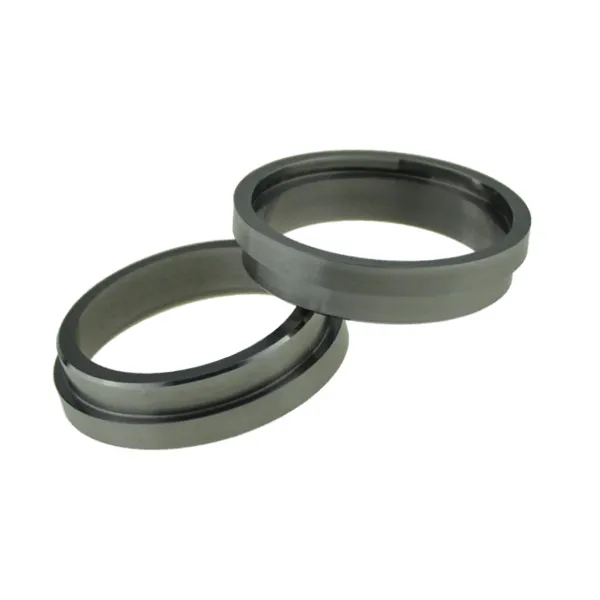

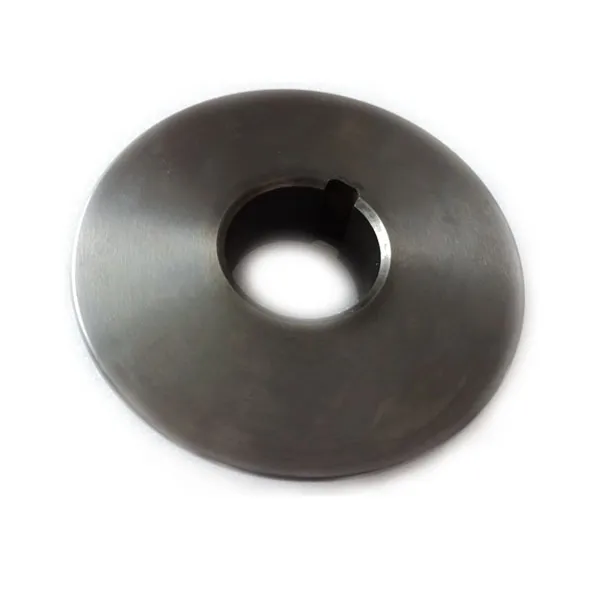

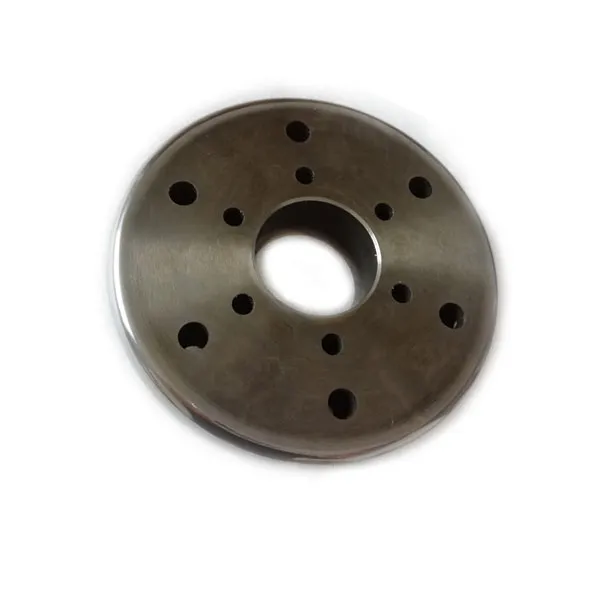

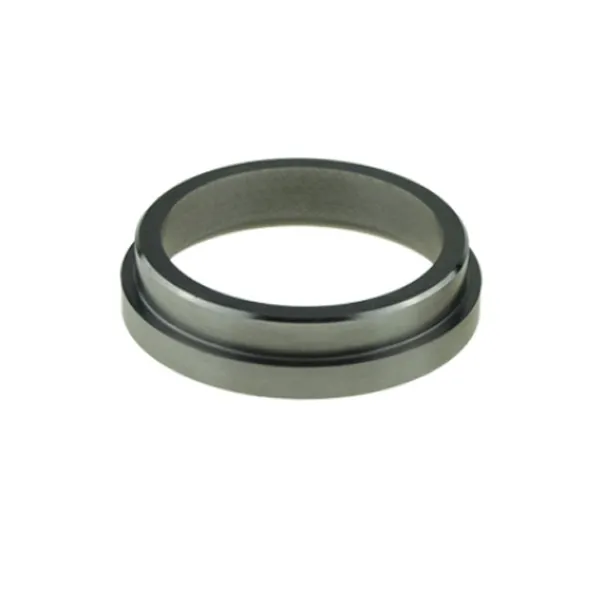

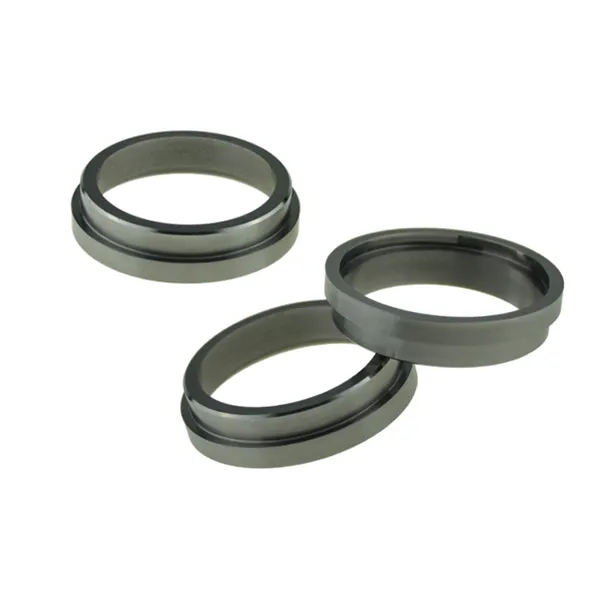

Factory Directly Tungsten Carbide Shaft Seal Ring Mechanical Seal Ring
Mechanical sealing rings made of tungsten carbide have the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.
Tungsten carbide mechanical seal rings are used as mechanical seal faces in pumps, Compressors and Agitators.
Carbide seal rings are used in oil refineries, Petrochemical plants,Fertilizer Plants and Drug/Pharmaceutial Industries.
Material grade details of tungsten carbide mechanical seal rings:
| Grade | Main Chemical Component (%) | Hardness (≥HRA) | Density (g/cm³) | T.R.S (≥N/mm²) | ||
| WC | Co | Ni | ||||
| YN6 | 94 | \ | 6 | 89 | 14.5-14.9 | 1500 |
| YN8 | 92 | \ | 8 | 88 | 14.4-14.8 | 1650 |
| YN10 | 90 | \ | 10 | 87 | 14.5-14.9 | 2100 |
| YG6 | 94 | 6 | \ | 89.5 | 14.7-15.1 | 1550 |
| YG8 | 92 | 8 | \ | 89 | 14.6-14.9 | 1850 |
| YG13 | 87 | 13 | \ | 88 | 13.9-14.2 | 2400 |
| YG15 | 85 | 15 | \ | 87 | 13.9-14.2 | 2500 |
Other material could be prodcued under your requirements.
Sizes of tungsten carbide mechanical seal rings produce under your drawing.
