Tungsten carbide nozzles plum blossom teeth has high temperature resistance, corrosion resistance, abrasion resistance.
The high pressure fluid jetted out of the nozzles can help break down the rocks

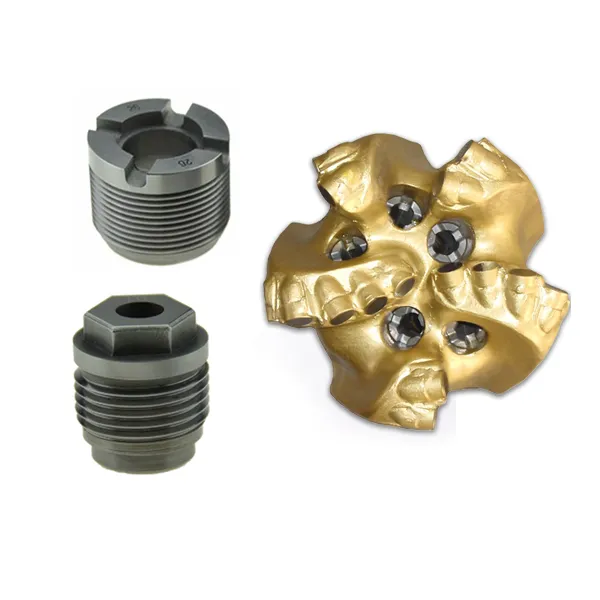

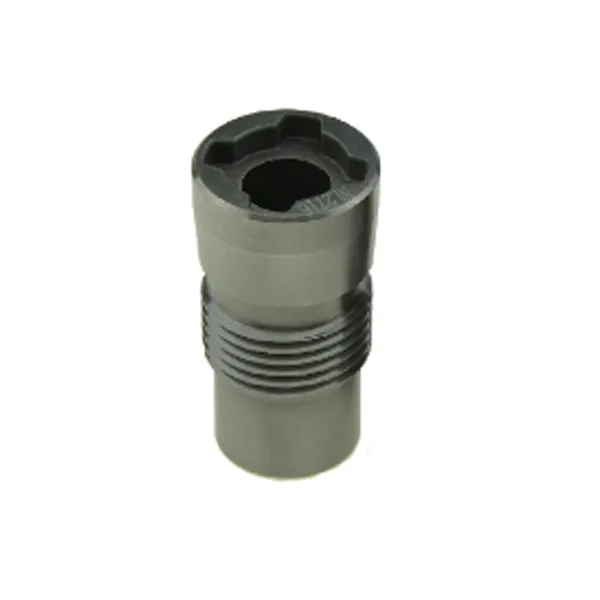

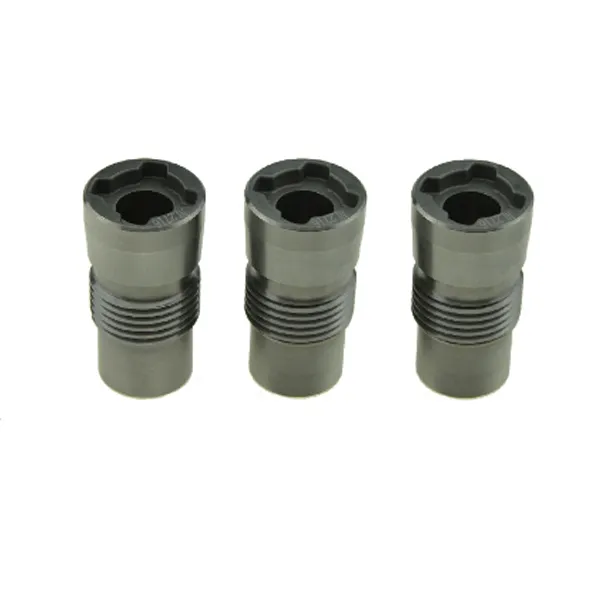

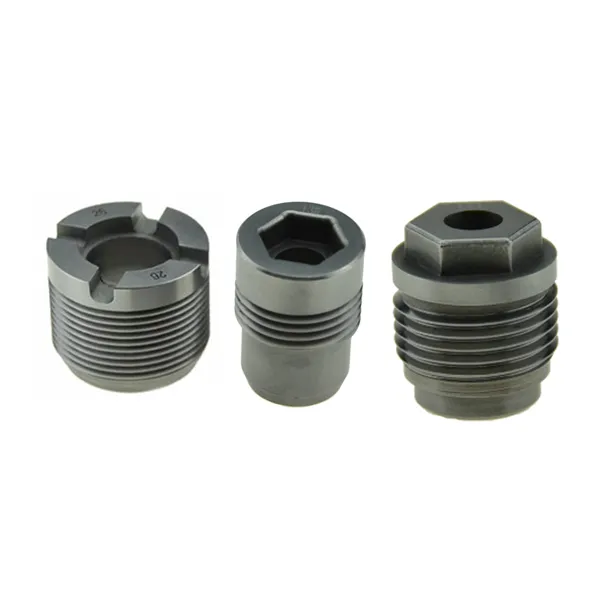

Tungsten Carbide Nozzles Plum Blossom Teeth For Oil Drill Bit
Tungsten carbide nozzles have excellent corrosion & erosion resistance. Mainly used in chemical industry, food, machinery, metallurgy, architecture and other industries for pulverizing, derusting, cleaning, atomization, etc.
Material grade details of tungsten carbide nozzles:
| Grade | Main Chemical Component (%) | Hardness (≥HRA) | Density (g/cm³) | T.R.S (≥N/mm²) | ||
| WC | Co | Ni | ||||
| YN6 | 94 | \ | 6 | 89 | 14.5-14.9 | 1500 |
| YN8 | 92 | \ | 8 | 88 | 14.4-14.8 | 1650 |
| YN10 | 90 | \ | 10 | 87 | 14.5-14.9 | 2100 |
| YG6 | 94 | 6 | \ | 89.5 | 14.7-15.1 | 1550 |
| YG8 | 92 | 8 | \ | 89 | 14.6-14.9 | 1850 |
| YG13 | 87 | 13 | \ | 88 | 13.9-14.2 | 2400 |
| YG15 | 85 | 15 | \ | 87 | 13.9-14.2 | 2500 |
Other material could be produced under your requirements.
Sizes of tungsten carbide nozzles produce under your drawing.
Application: tungsten carbide nozzles usually used in oil drilling bits, such as PDC drill bit and roller cone bits.
