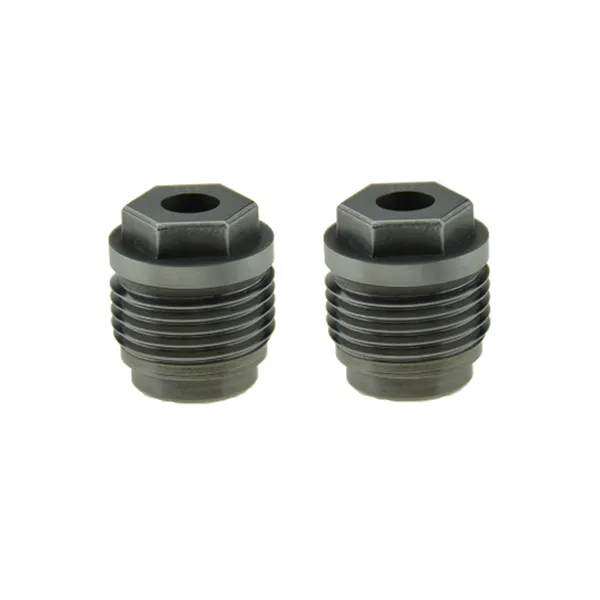

External hexagon tungsten carbide spray nozzles has high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.
Tungsten Carbide Spray Nozzle For PDC Drilling Bit
Tungsten carbide nozzles have excellent corrosion & erosion resistance. Mainly used in chemical industry, food, machinery, metallurgy, architecture and other industries for pulverizing, derusting, cleaning, atomization, etc.
Material grade details of tungsten carbide nozzles:
| Grade | Main Chemical Component (%) | Hardness (≥HRA) | Density (g/cm³) | T.R.S (≥N/mm²) | ||
| WC | Co | Ni | ||||
| YN6 | 94 | \ | 6 | 89 | 14.5-14.9 | 1500 |
| YN8 | 92 | \ | 8 | 88 | 14.4-14.8 | 1650 |
| YN10 | 90 | \ | 10 | 87 | 14.5-14.9 | 2100 |
| YG6 | 94 | 6 | \ | 89.5 | 14.7-15.1 | 1550 |
| YG8 | 92 | 8 | \ | 89 | 14.6-14.9 | 1850 |
| YG13 | 87 | 13 | \ | 88 | 13.9-14.2 | 2400 |
| YG15 | 85 | 15 | \ | 87 | 13.9-14.2 | 2500 |
Other material could be produced under your requirements.
Sizes of tungsten carbide nozzles produce under your drawing.

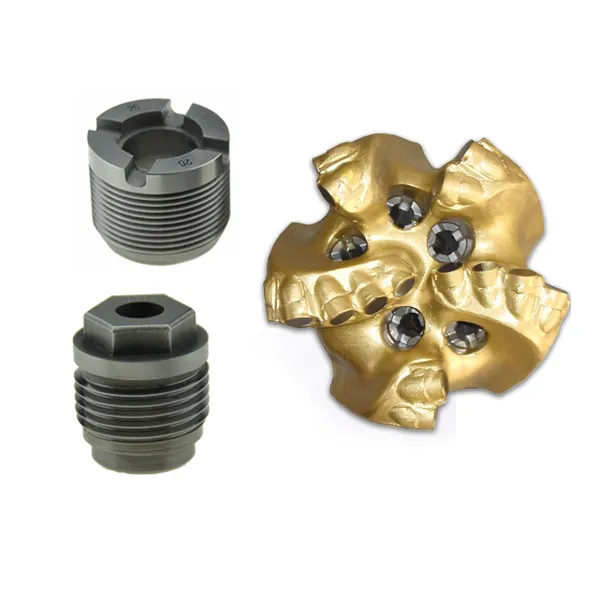

Application: tungsten carbide nozzles usually used in oil drilling bits, such as PDC drill bit and roller cone bits.
