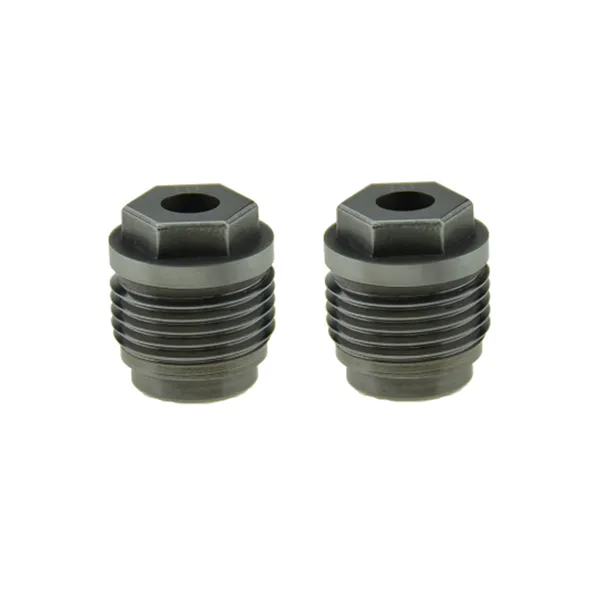

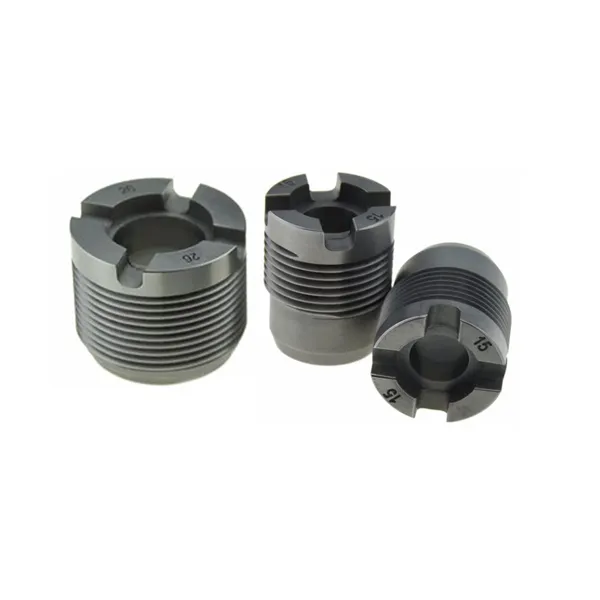

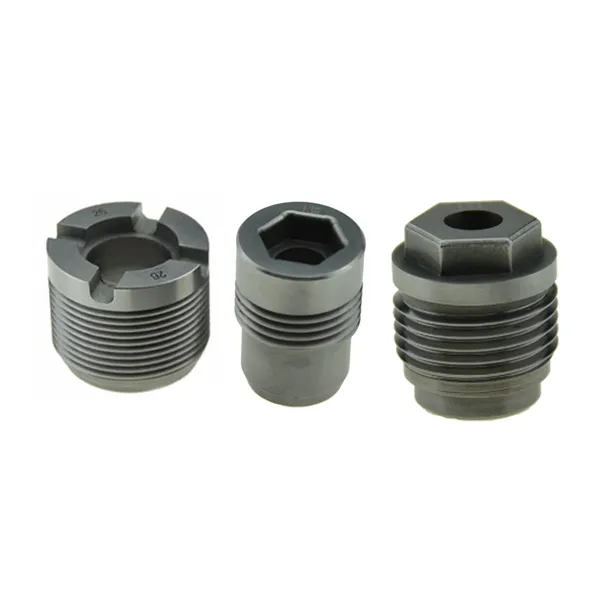

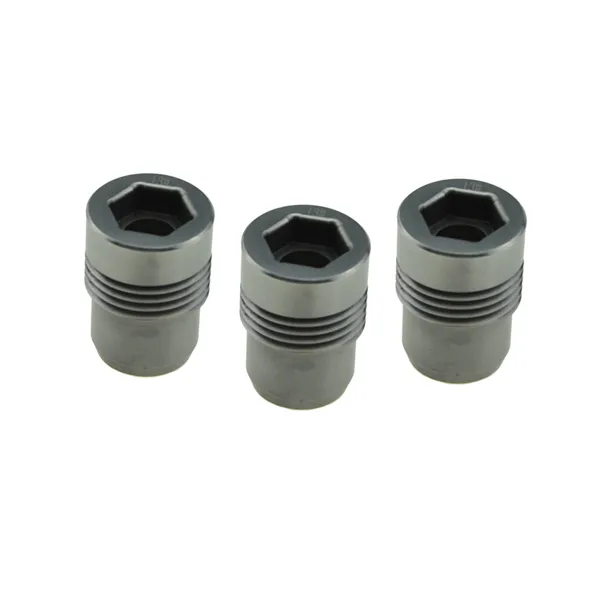

Tungsten carbide thread nozzles, have many types (cross slot/ hexagon... ) mainly used for oil drill bits for flushing, cooling and lubricating drill bits buttons.
Tungsten Carbide Thread Nozzles With High Wear Resistance
Tungsten carbide nozzles have excellent corrosion & erosion resistance. Mainly used in oil & gas industry, chemical industry, food, machinery, metallurgy, architecture and other industries for pulverizing, derusting, cleaning, atomization, etc.
Material grade details of tungsten carbide nozzles:
| Grade | Main Chemical Component (%) | Hardness (≥HRA) | Density (g/cm³) | T.R.S (≥N/mm²) | ||
| WC | Co | Ni | ||||
| YN6 | 94 | \ | 6 | 89 | 14.5-14.9 | 1500 |
| YN8 | 92 | \ | 8 | 88 | 14.4-14.8 | 1650 |
| YN10 | 90 | \ | 10 | 87 | 14.5-14.9 | 2100 |
| YG6 | 94 | 6 | \ | 89.5 | 14.7-15.1 | 1550 |
| YG8 | 92 | 8 | \ | 89 | 14.6-14.9 | 1850 |
| YG13 | 87 | 13 | \ | 88 | 13.9-14.2 | 2400 |
| YG15 | 85 | 15 | \ | 87 | 13.9-14.2 | 2500 |
Other material could be prodcued under your requirements.
Sizes of tungsten carbide nozzles produce under your drawing.

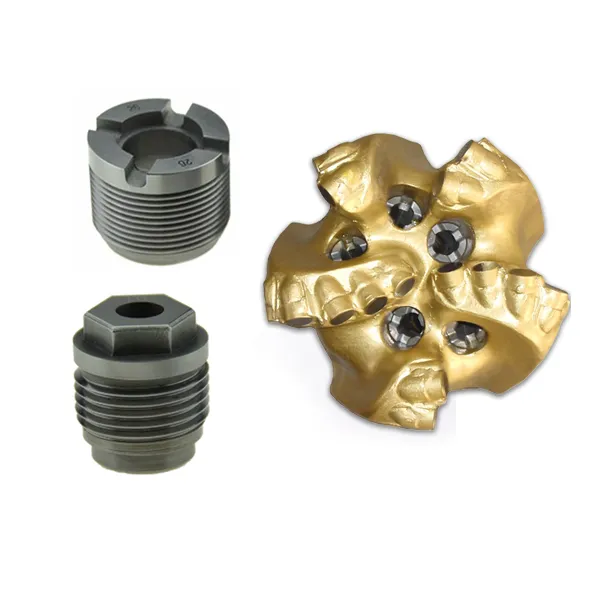

Application: tungsten carbide nozzles usually used in oil drilling bits, such as PDC drill bit and roller cone bits.
