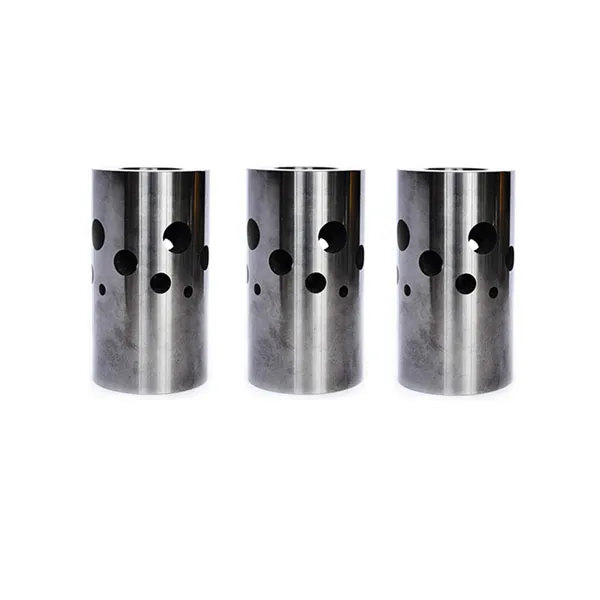

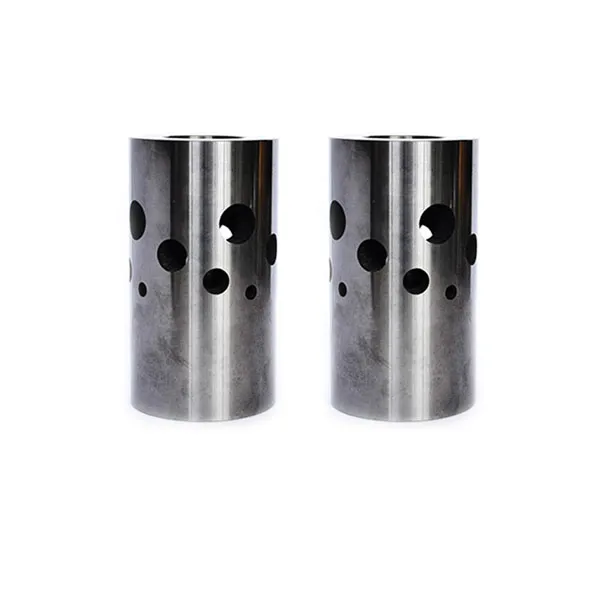

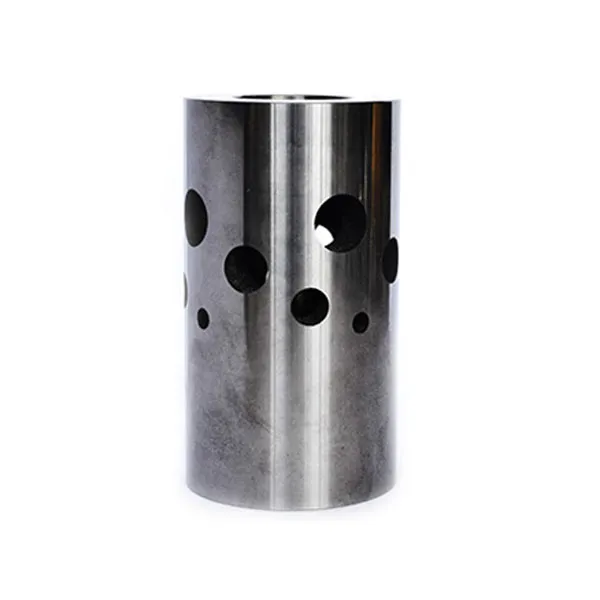

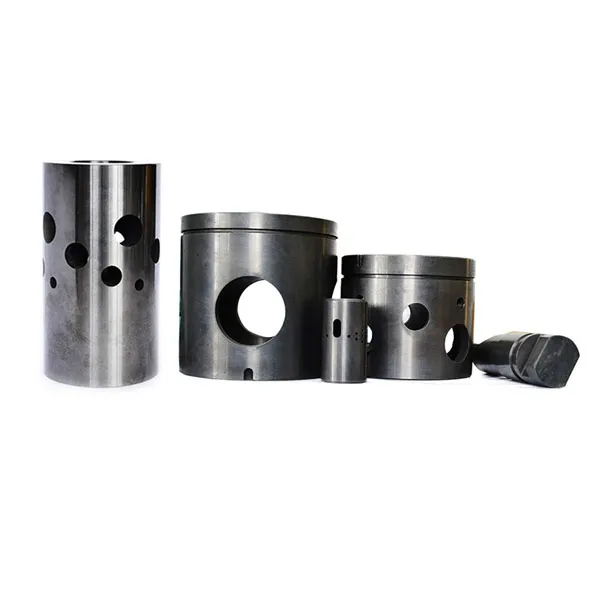

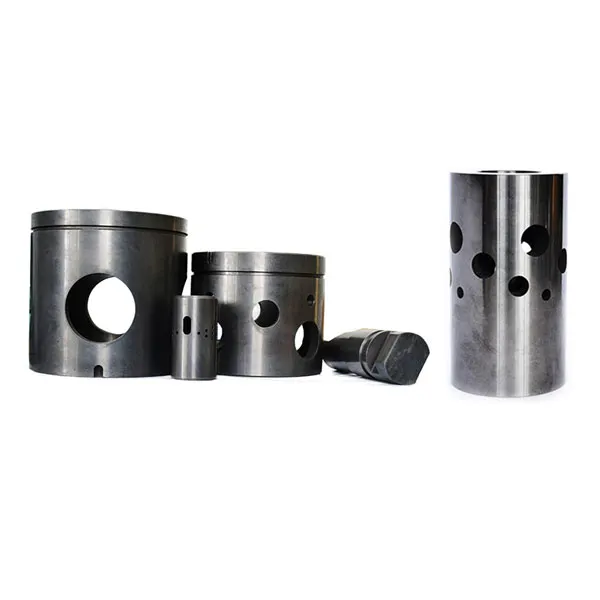

Tungsten carbide flow trim used in anti-erosion anti-corrosion required oil and gas flow control valves, they could be in a wide variety of configurations and specifications.
tungsten carbide flow trim for oil & gas flow control valves
We are producing tunsgten carbide flow trim ( carbide flow control trim )for valves in oil and gas industries. Tungsten carbide flow trim provided by us is accurately designed with a diameter hole for easy transfer of gases and petroleum fluids. Robust structure and effectual functioning are the prime reasons for high demand of flow trim that we dispatch in the markets.
Material grade details of tungsen carbide flow trim:
Cobalt Binder Grades:
| Grade | Binder (Wt%) | Density (g/cm3) | Hardness (HRA) | TRS (>=N/mm²) |
| YG6 | 6 | 14.8 | 90 | 1520 |
| YG6X | 6 | 14.9 | 91 | 1450 |
| YG6A | 6 | 14.9 | 92 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88 | 1810 |
| YG15 | 15 | 14 | 87 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84 | 2550 |
Nickel Binder Grades:
| Grade | Binder (Wt%) | Density (g/cm3) | Hardness (HRA) | TRS (>=N/mm²) |
| YN6 | 6 | 14.7 | 89.5 | 1460 |
| YN6X | 6 | 14.8 | 90.5 | 1400 |
| YN6A | 6 | 14.8 | 91 | 1480 |
| YN8 | 8 | 14.6 | 88.5 | 1710 |
Other material could be prodcued under your requirements.
Sizes of tungsten carbide flow trims produce under your drawing.
