Tungsten carbide flow cage for choke valves to control the flow to a certain flow coefficient in petroleum industry's sand containing wells, viscous oil wells, sea oil wells and high pressure sulfur resistant oil wells

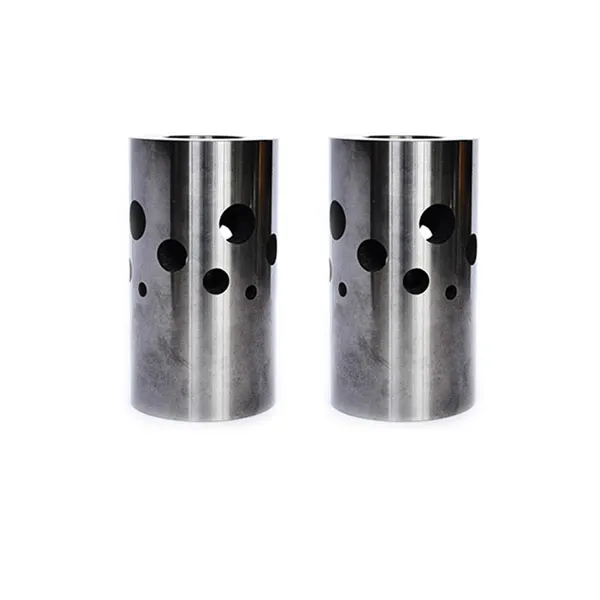

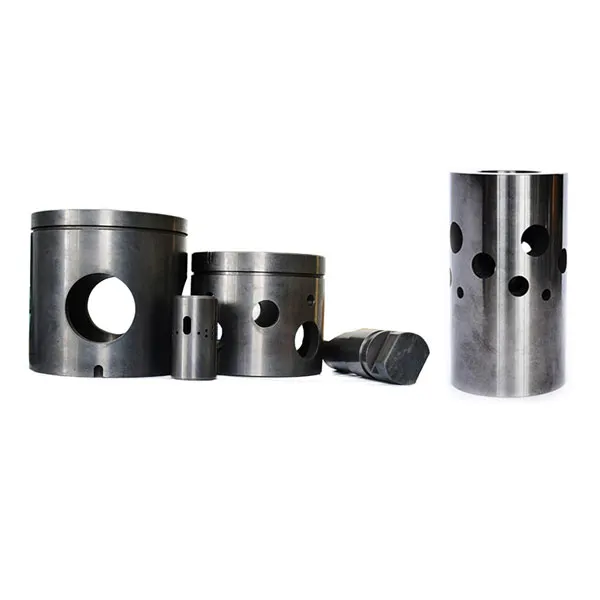

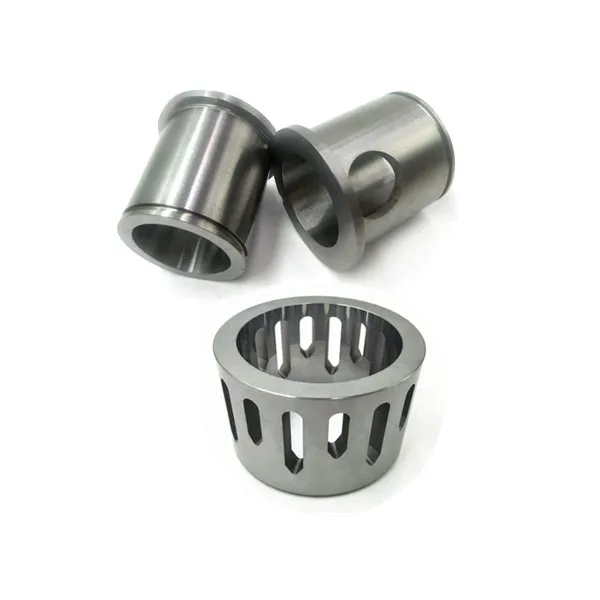

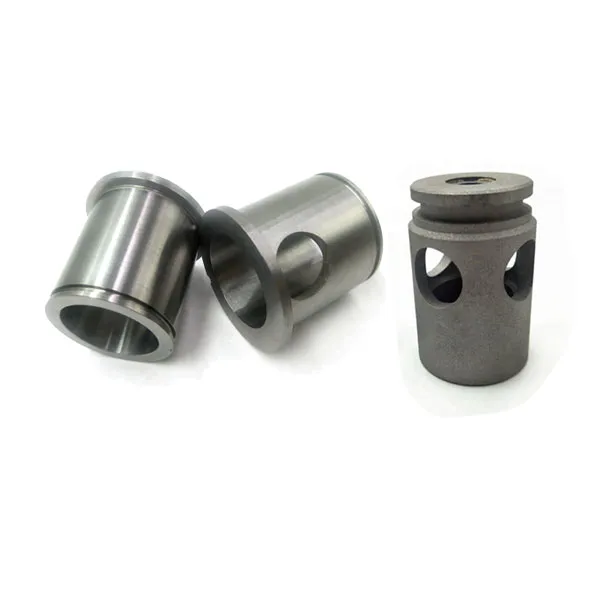

Tungsten carbide flow cage for choke valves
We are producing tunsgten carbide flow cage ( carbide flow control cage )for valves in oil and gas industries. Tungsten carbide flow trim provided by us is accurately designed with a diameter hole for easy transfer of gases and petroleum fluids. Robust structure and effectual functioning are the prime reasons for high demand of flow trim that we dispatch in the markets.
Material grade details of tungsten carbide flow cage:
Cobalt Binder Grades:
| Grade | Binder (Wt%) | Density (g/cm3) | Hardness (HRA) | TRS (>=N/mm²) |
| YG6 | 6 | 14.8 | 90 | 1520 |
| YG6X | 6 | 14.9 | 91 | 1450 |
| YG6A | 6 | 14.9 | 92 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88 | 1810 |
| YG15 | 15 | 14 | 87 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84 | 2550 |
Nickel Binder Grades:
| Grade | Binder (Wt%) | Density (g/cm3) | Hardness (HRA) | TRS (>=N/mm²) |
| YN6 | 6 | 14.7 | 89.5 | 1460 |
| YN6X | 6 | 14.8 | 90.5 | 1400 |
| YN6A | 6 | 14.8 | 91 | 1480 |
| YN8 | 8 | 14.6 | 88.5 | 1710 |
Other material could be produced under your requirements.
Sizes of tungsten carbide flow cage produce under your drawing.
