OEM/ODM, produce a wide variety of tungsten carbide bushings, seal rings, nozzles, and many different grade for different application

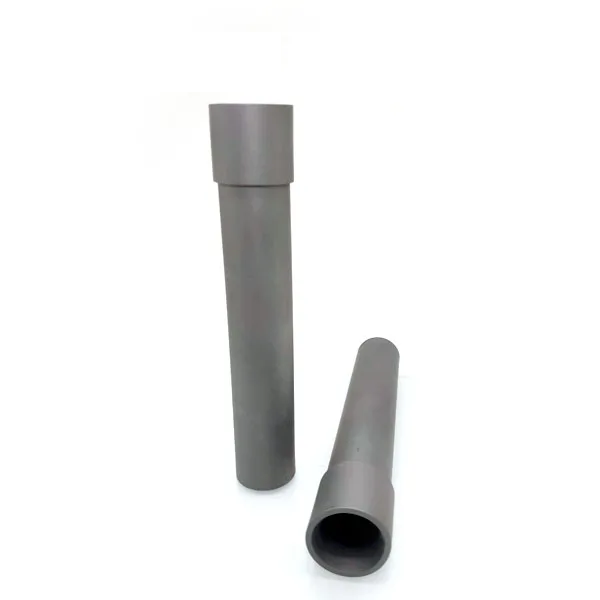

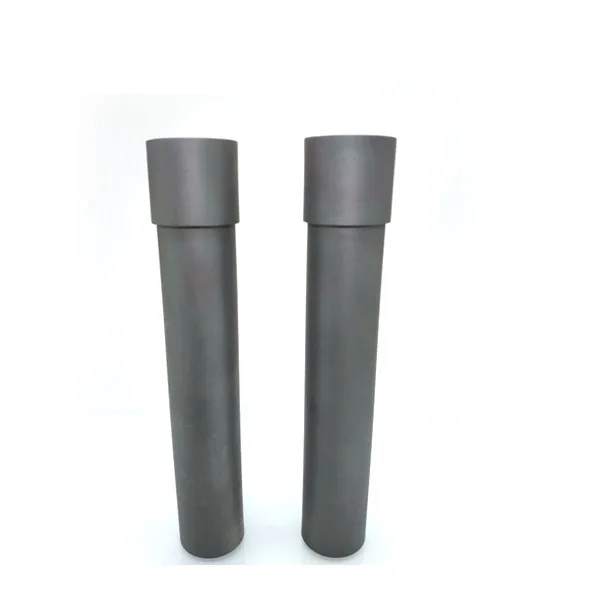

Tungsten carbide sleeve & bushing
Bushing & sleeves made of tungsten carbide have the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.
Tungsten carbide sleeves/ bush mainly used for rotating support, aligning anti-thrust and seal of the axle of motor, centrifuge, protector and separator of the submerged electric pump in the adverse working conditions of high speed rotation, sand lash abrasion and gas corrosion in the oil field, such as slide bearing sleeve, motor axle sleeve, aligning bearing sleeve, anti-thrust bearing sleeve and seal axle sleeve.
Material grade details of tungsten carbide sleeves/ bush:
| Grade | Main Chemical Component (%) | Hardness (≥HRA) | Density (g/cm³) | T.R.S (≥N/mm²) | ||
| WC | Co | Ni | ||||
| YN6 | 94 | \ | 6 | 89 | 14.5-14.9 | 1500 |
| YN8 | 92 | \ | 8 | 88 | 14.4-14.8 | 1650 |
| YN10 | 90 | \ | 10 | 87 | 14.5-14.9 | 2100 |
| YG6 | 94 | 6 | \ | 89.5 | 14.7-15.1 | 1550 |
| YG8 | 92 | 8 | \ | 89 | 14.6-14.9 | 1850 |
| YG13 | 87 | 13 | \ | 88 | 13.9-14.2 | 2400 |
| YG15 | 85 | 15 | \ | 87 | 13.9-14.2 | 2500 |
Other material could be prodcued under your requirements.
Sizes of tungsten carbide sleeves/ bush produce under your drawing.
