Tungsten carbide grinding jars are applied to the fields of Metallurgy, Ceramics, Electronics, Light Industry, Paint, Medicine, Geology, Chemical Engineering...

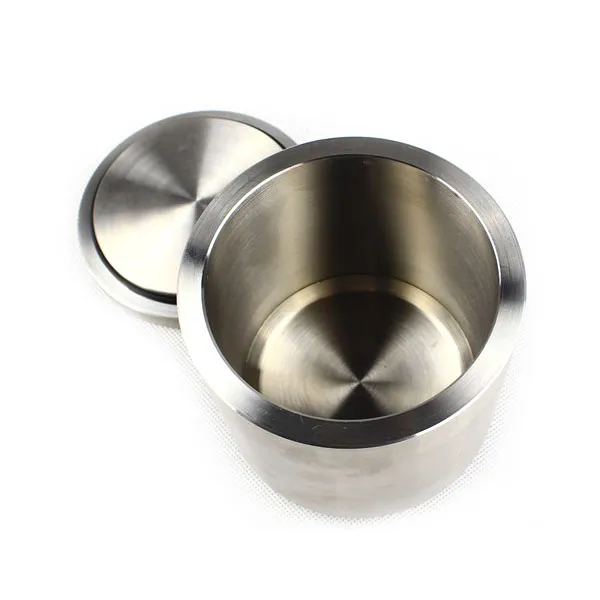

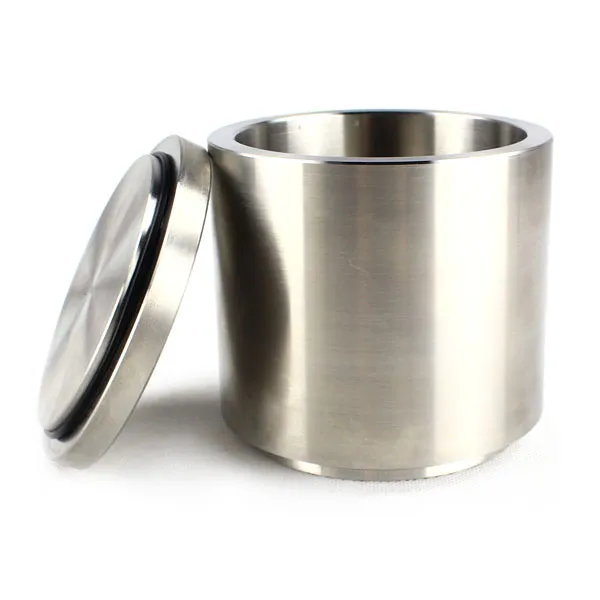

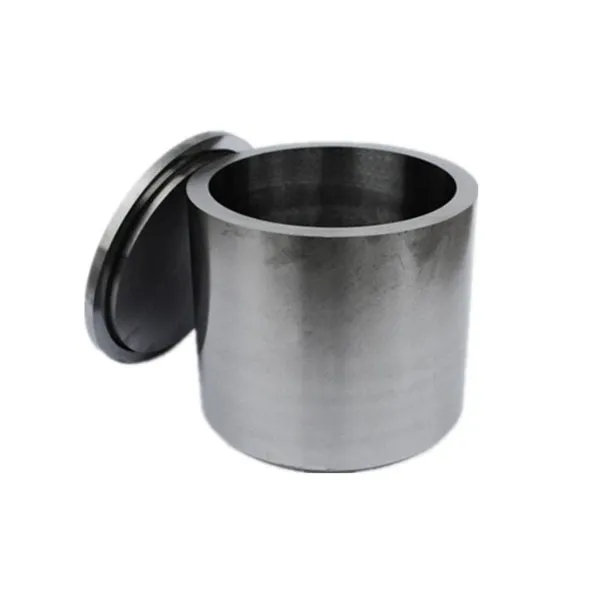

High Polished Tungsten Carbide Grinding Jar
Tungsten carbide grinding Jars are applied to planetary ball mill, usually A planetary ball mill needs for grinding jars, carbide grinding jars of differents sizes equipts different sizes and number carbide balls.
Carbide grinding jars usually made of YG6, YG8, their specifications are in the below chart:
| Grade | WC (wt%) | CO (wt%) | Hardness HRA | Density g/cm3 | TRS N/mm2 |
| YG6 | 94 | 6 | 92.1 | 14.95 | 2150 |
| YG8 | 92 | 8 | 88.5 | > 14.4 | 2400 |
Note: other carbide material grade could be supplied under your requirement.
unit: mm
| Jar Volume | D1 | D2 | H | h | T |
| 50ml | 48 | 36 | 64 | 8 | 6 |
| 100ml | 63 | 51 | 59 | 6 | 6 |
| 250ml | 86 | 74 | 69 | 10 | 6 |
| 500ml | 105 | 92 | 96 | 14 | 6.5 |
| 1000ml | 130 | 115 | 125 | 14 | 7.5 |

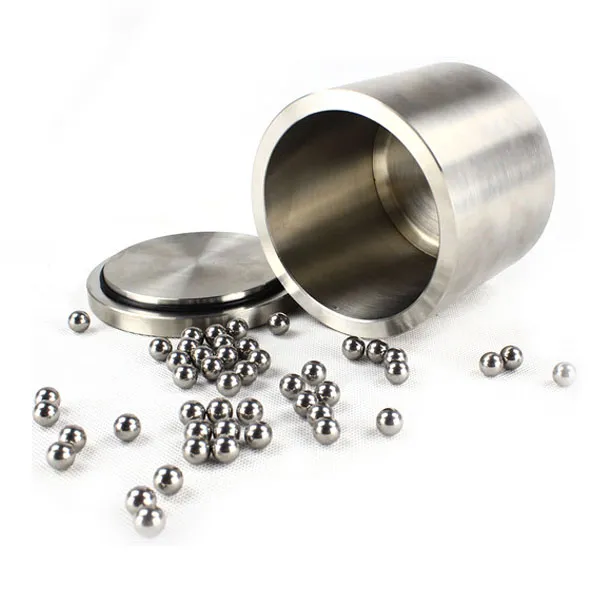

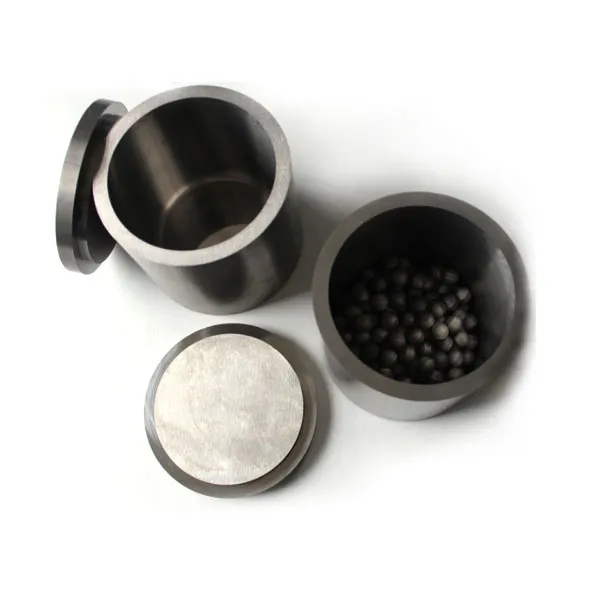

Tungsten carbide grinding ball configuration:
| Jar Volume | 50ml | 100ml | 250ml | 500ml | 1000ml | |
| Ball size/qty | Ø6mm | 50 pcs | 100 pcs | 280 pcs | 500 pcs | 1000 pcs |
| Ø10mm | 8 pcs | 16 pcs | 40 pcs | 100 pcs | 200 pcs | |
| Ø20mm | 2 pcs | 3 pcs | ||||
Other sizes of carbide grinding mill jar could produced under your drawing too.
