Descaling roller material: tungsten carbide or tool steel
Application: tungsten carbide descaling rolls are used for the mechanical descaling of wire rods in steel industry.

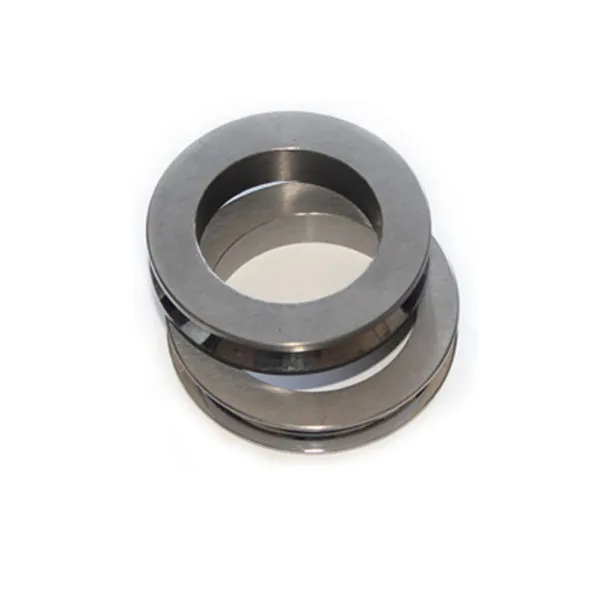

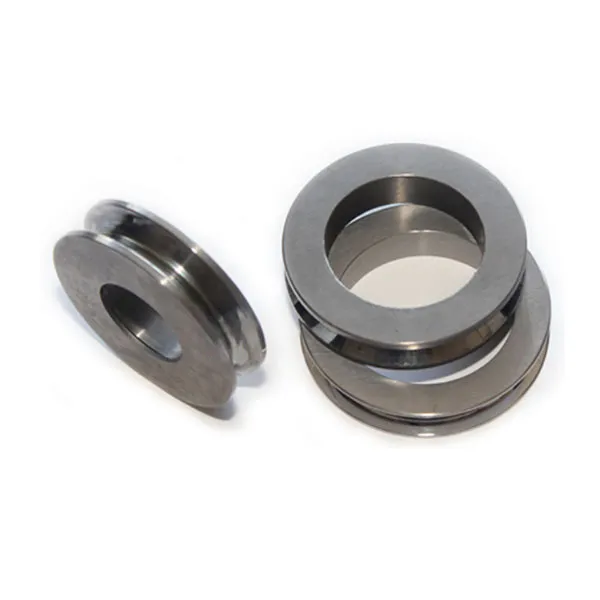

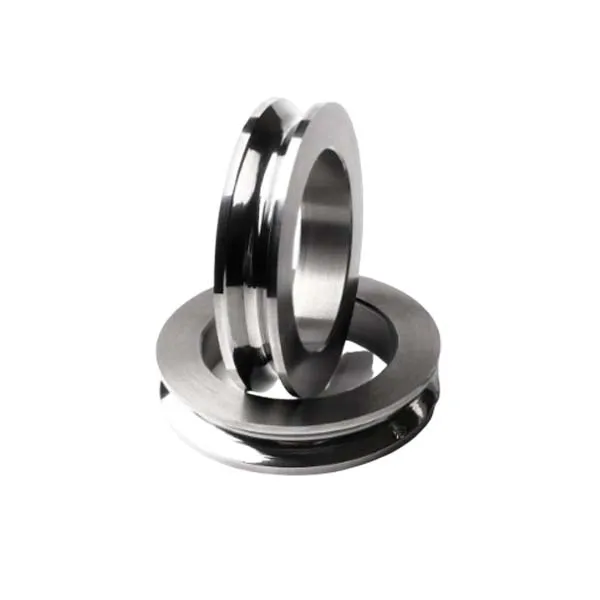

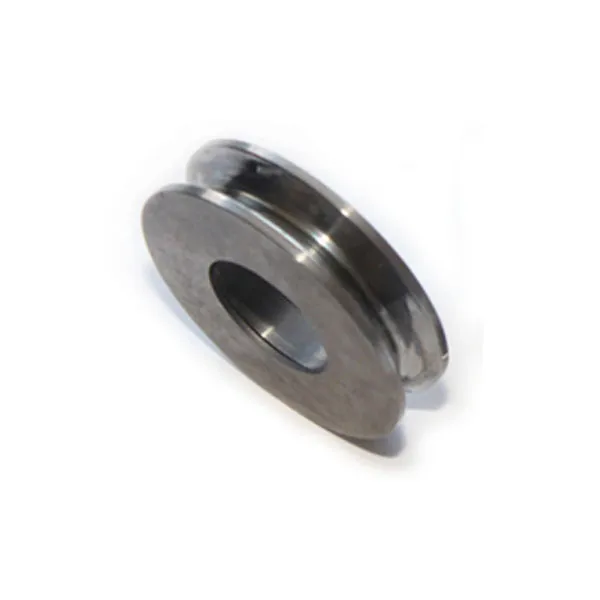

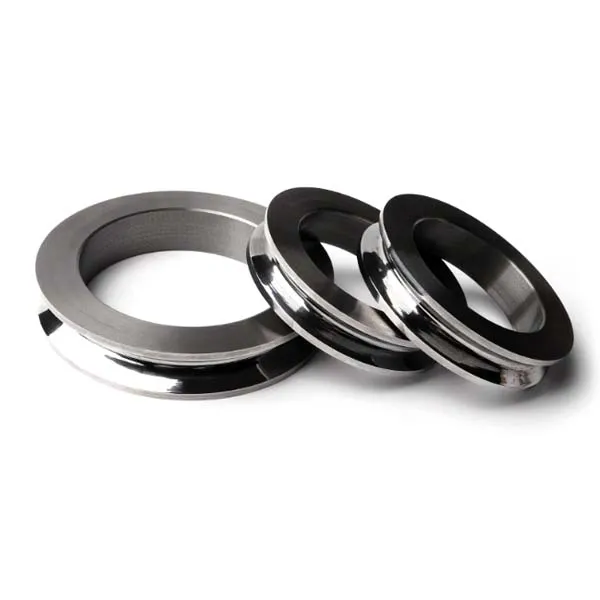

Tungsten Carbide Descaling Roller For Wire Stranding Machines
Tungsten carbide descaling roller are used for metal wire cleaning purpose.
Material grade details of tungsten carbide descaling rollers:
| Grade | Chemical Composition | Physical Property | |||
| Co(%) | Density(g/cm3) | Hardness | H.C Ka/m(Qe) | TRS（N/mm2) | |
| YG06 | 6±0.5 | 14.90-15.00 | 89.8-90.8 | 8.0-13.0 (100-162) | 2200-2300 |
| YG06A | 6±0.5 | 14.90-15.00 | 90.0-91.0 | 9.5-14.0 (118-175) | 2300 |
| YG08 | 8±0.5 | 14.70-14.80 | 89.0-90.0 | 8.0-11.1 (100-140) | 2200-2500 |
| YG08A | 8±0.5 | 14.70-14.80 | 89.8-90.6 | 10.3-15.1 (130-190) | 2500 |
| YG09 | 9±1.0 | 14.45-14.85 | ≥89.0 | ≥2800 | |
| YG10 | 10±0.5 | 14.50-14.60 | 88.0-88.8 | 6.8-9.6 (85-120) | 2900 |
| YG10A | 10±0.5 | 14.50-14.60 | 88.6-89.4 | 7.2-10.7 (90-135) | 2950 |
| YG12 | 12±0.5 | 14.23-14.43 | 87.4-88.4 | 4.8-7.5 (60-95) | 2900 |
| YG13 | 13±0.5 | 14.10-14.30 | 87.0-88.0 | 6.4-8.8 (85-110) | 2750 |
| YG13A | 13±0.5 | 14.12-14.32 | 88.0-89.0 | 8.8-11.6 (110-145) | 2900 |
| YG15 | 15±0.5 | 13.99-14.09 | 87.0-88.0 | 2900-3100 | |
| YG16 | 16±0.5 | 13.90-14.00 | 86.0-87.2 | 5.6-8.4 (70-105) | 2800-3000 |
| YG16C | 16±0.5 | 13.90-14.00 | 85.0-86.0 | 4.4-6.4 (55-80) | 2500-2700 |
| YG16H | 16±0.5 | 13.85-13.95 | 86.3-88 | 2900-3200 | |
| YG18 | 18±0.5 | 13.7-13.8 | 85.5-86.5 | 2450-2550 | |
| YG20 | 20±0.5 | 13.50-13.60 | 84.6-85.6 | 3.6-5.6 (45-70) | 2350-2450 |
| YG20C | 20±0.5 | 13.5-13.7 | 82.5-83.0 | 2550-2650 | |
| YG25 | 25±0.5 | 13.05-13.25 | 83.0-84.0 | 4.4-5.6 (55-70) | 2600 |
| YH10 | 20±0.5 | 13.5-13.6 | 83.0-83.5 | ||
| YH20 | 22±0.5 | 13.3-13.4 | 82.0-82.5 | ||
| YH30 | 25±0.5 | 13.1-13.2 | 81.5-82.0 | ||
| Other grade can be provided as per your requests. | |||||
Deacaling rollers could also be made in tools steel to save cost.
Sizes of carbide descaling rollers can be produced under your requirements.
