Straightening roller material: tungsten carbide or tool steel
Application: to provide uniform bending of wire or rod material to change its shape and possible other characteristics for use in subsequent processing.

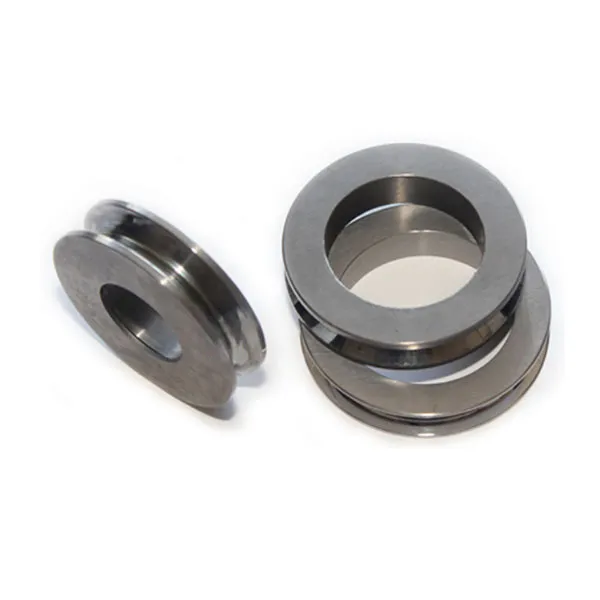

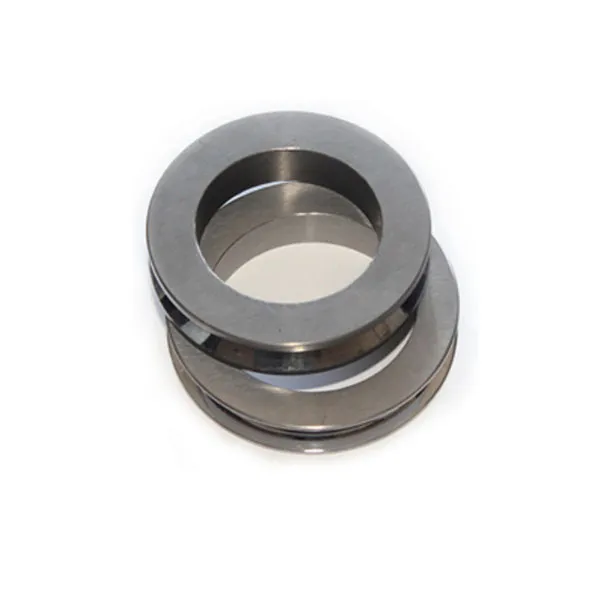

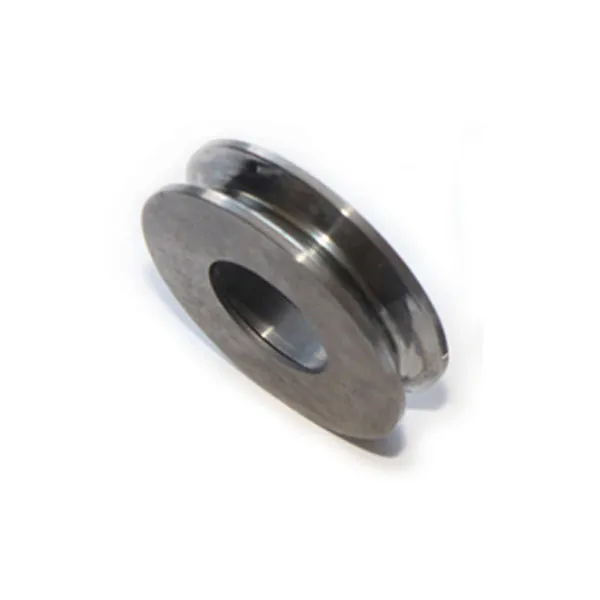

Tungsten Carbide Straightening Roller For Mesh Welding Machine

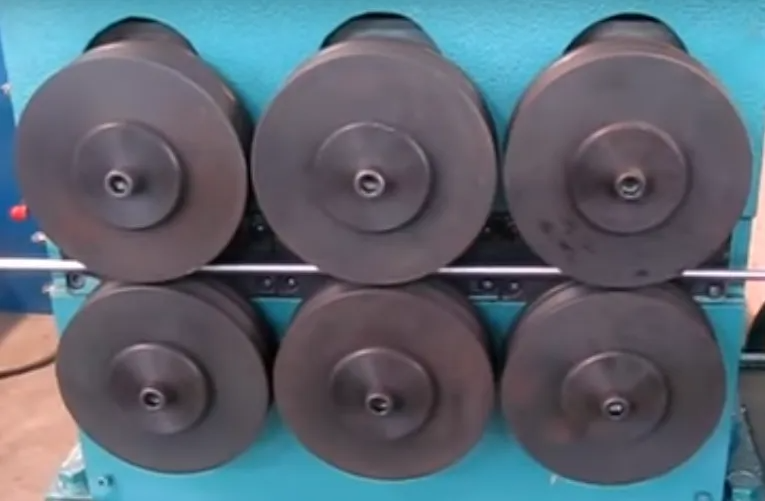

Tungsten carbide straightening roller are used for metal wire straightening purpose. Tungsten carbide straightening roller could provide uniform bending of wire or rod material to change its shape and possible other characteristics for use in subsequent processing.
Material grade details of tungsten carbide straightening rollers:
| Grade | Chemical Composition | Physical Property | |||
| Co(%) | Density(g/cm3) | Hardness | H.C Ka/m(Qe) | TRS（N/mm2) | |
| YG06 | 6±0.5 | 14.90-15.00 | 89.8-90.8 | 8.0-13.0 (100-162) | 2200-2300 |
| YG06A | 6±0.5 | 14.90-15.00 | 90.0-91.0 | 9.5-14.0 (118-175) | 2300 |
| YG08 | 8±0.5 | 14.70-14.80 | 89.0-90.0 | 8.0-11.1 (100-140) | 2200-2500 |
| YG08A | 8±0.5 | 14.70-14.80 | 89.8-90.6 | 10.3-15.1 (130-190) | 2500 |
| YG09 | 9±1.0 | 14.45-14.85 | ≥89.0 | ≥2800 | |
| YG10 | 10±0.5 | 14.50-14.60 | 88.0-88.8 | 6.8-9.6 (85-120) | 2900 |
| YG10A | 10±0.5 | 14.50-14.60 | 88.6-89.4 | 7.2-10.7 (90-135) | 2950 |
| YG12 | 12±0.5 | 14.23-14.43 | 87.4-88.4 | 4.8-7.5 (60-95) | 2900 |
| YG13 | 13±0.5 | 14.10-14.30 | 87.0-88.0 | 6.4-8.8 (85-110) | 2750 |
| YG13A | 13±0.5 | 14.12-14.32 | 88.0-89.0 | 8.8-11.6 (110-145) | 2900 |
| YG15 | 15±0.5 | 13.99-14.09 | 87.0-88.0 | 2900-3100 | |
| YG16 | 16±0.5 | 13.90-14.00 | 86.0-87.2 | 5.6-8.4 (70-105) | 2800-3000 |
| YG16C | 16±0.5 | 13.90-14.00 | 85.0-86.0 | 4.4-6.4 (55-80) | 2500-2700 |
| YG16H | 16±0.5 | 13.85-13.95 | 86.3-88 | 2900-3200 | |
| YG18 | 18±0.5 | 13.7-13.8 | 85.5-86.5 | 2450-2550 | |
| YG20 | 20±0.5 | 13.50-13.60 | 84.6-85.6 | 3.6-5.6 (45-70) | 2350-2450 |
| YG20C | 20±0.5 | 13.5-13.7 | 82.5-83.0 | 2550-2650 | |
| YG25 | 25±0.5 | 13.05-13.25 | 83.0-84.0 | 4.4-5.6 (55-70) | 2600 |
| YH10 | 20±0.5 | 13.5-13.6 | 83.0-83.5 | ||
| YH20 | 22±0.5 | 13.3-13.4 | 82.0-82.5 | ||
| YH30 | 25±0.5 | 13.1-13.2 | 81.5-82.0 | ||
| Other grade can be provided as per your requests. | |||||
tungsten carbide straightening rollers could also be made in tools steel to save cost.
Sizes of carbide straightening rollers can be produced under your requirements.
