Tungsten carbide is very suitable for high quality requirement for making tungsten carbide buttons to be used in high and medium pressure DTH drilling. Tungsten carbide buttons have always been our main products through the years.

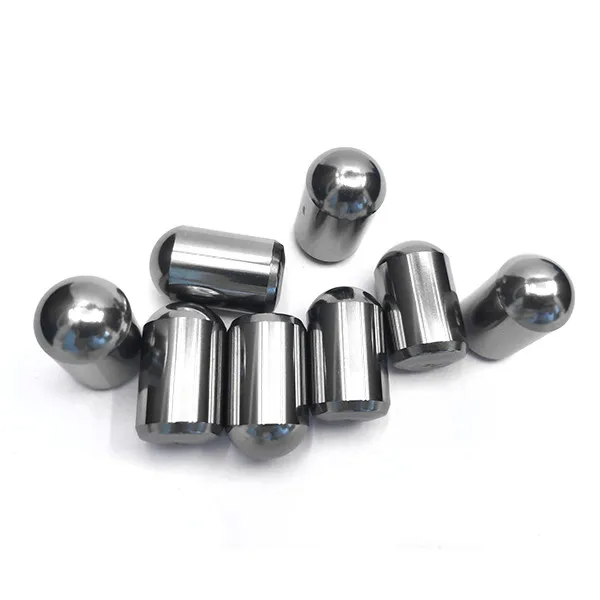

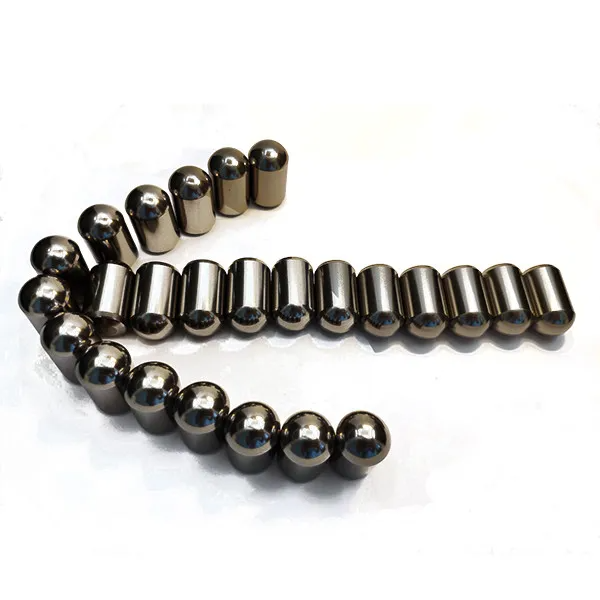

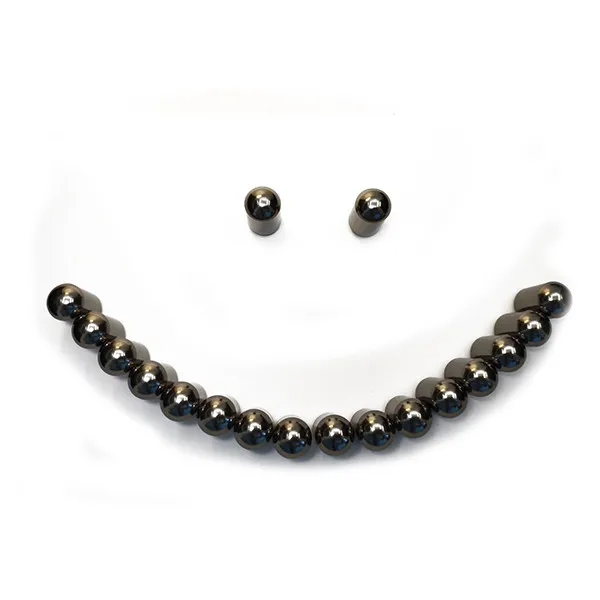

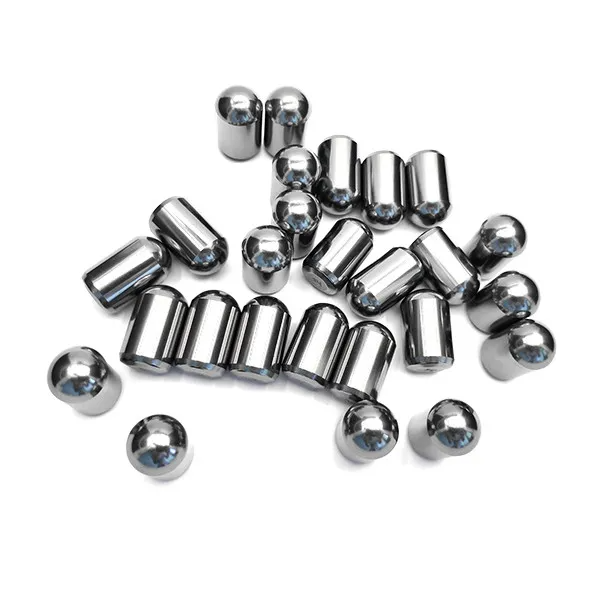

Tungsten carbide buttons and tips for rock drilling tools
1.we choose 100% raw material .
2.You can choose many kinds of grades for your need.
3.we have professional advanced production and testing equipments ensure high quality products.
4.Precision Ground and polished
5.High wear resistance,high hardness and impact toughness

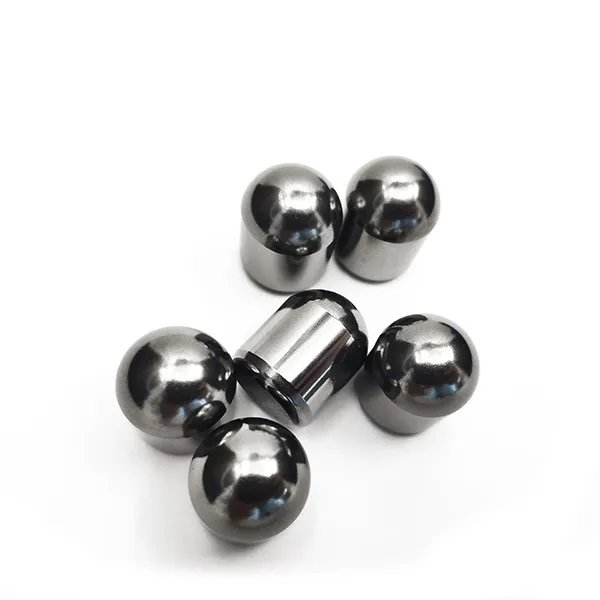

Dome Button
| 型号 Type | 尺寸 Dimension | |||
| D | H | e | R | |
| XY0810 | 8 | 10 | 1.5 | 4.2 |
| XY0812 | 8 | 12 | 1.5 | 4.2 |
| XY1012 | 10 | 12 | 1.5 | 5.2 |
| XY1015 | 10 | 14 | 1.5 | 5.2 |
| XY1215 | 12 | 16 | 1.5 | 6.2 |
| XY1220 | 12.3 | 20 | 1.5 | 6.3 |
| XY1315 | 13 | 15.5 | 1.5 | 6.7 |
| XY1420A | 13.7 | 19 | 2.0 | 7.02 |
| XY1420B | 13.7 | 22 | 2.0 | 7.02 |
| XY1420C | 14.3 | 22 | 2.0 | 7.33 |
| XY1620 | 16.7 | 21 | 2.0 | 8.55 |
| XY1625A | 16.7 | 25 | 2.0 | 8.55 |
| XY1625B | 16.7 | 28 | 2.0 | 8.55 |
| XY1825 | 18 | 27 | 2.0 | 9.2 |
| XY2030 | 20 | 30 | 2.0 | 10.2 |
| XY2540 | 25 | 40 | 2.0 | 12.7 |
We produce and research medium and high-grade tungsten carbide products with rich technology strength and integrating with new test and producing equipments, guided by excellent technologists and supervisors, we specializes in producing tungsten carbide buttons, tungsten carbide wear parts for oil-field and coal –field machinery, saw tips and other non-standard products. Our products are sold very well home and abroad with high reputation.
Contact: Ms. Carol
Phone: +86-731-28632688
E-mail: sales@dlcarbide.com
Add: Jinshan Road（Jinshan Technology Industrial Park）, Hetang District, Zhuzhou City, Hunan Province, China
