Finished tungsten carbide roll rings with grooves is widely used hot roll mills to produce steel rod, wire, rebar

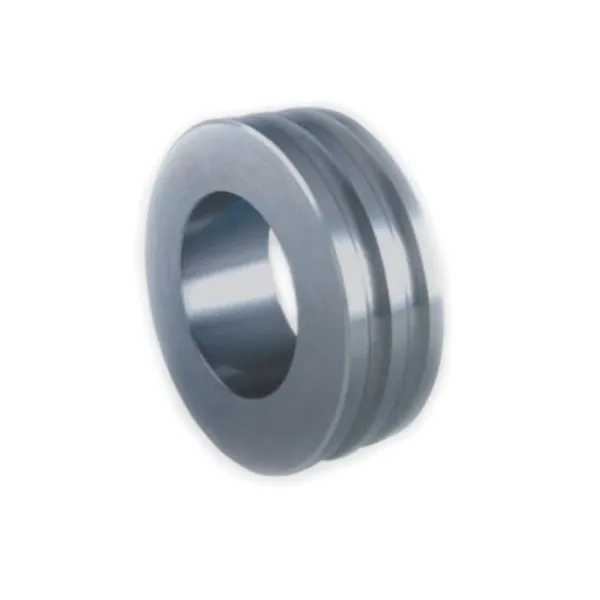

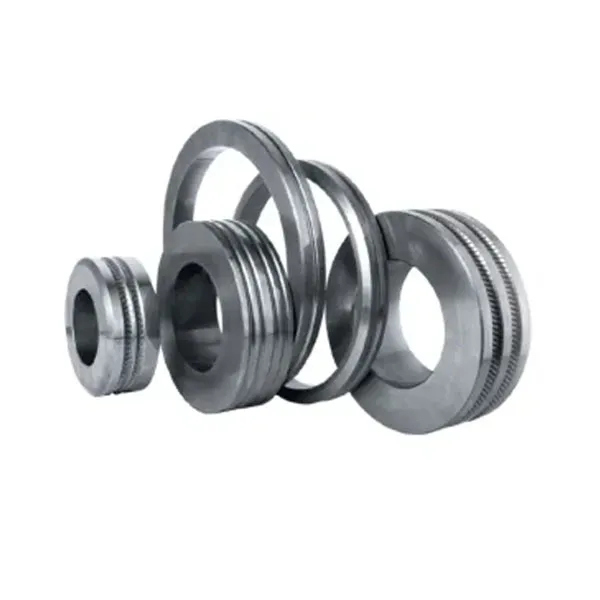

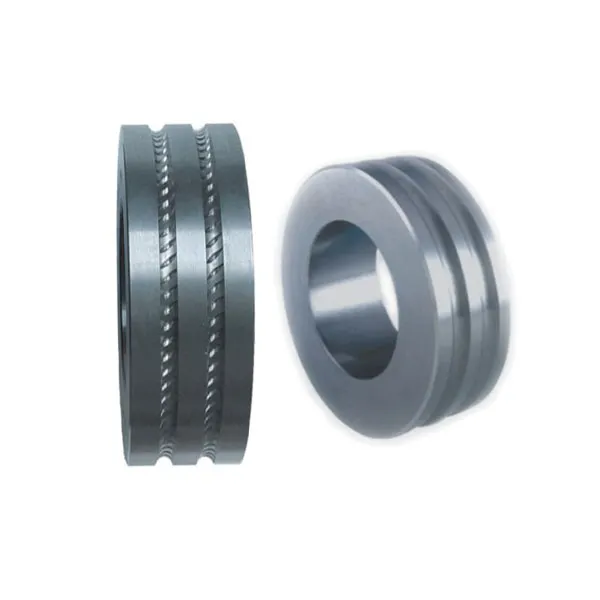

Finished Tungsten Carbide Roll Rings With Grooves
We can do the size as following
OD (120 - 450mm)
ID (80 - 280mm)
Thickness (20 - 150mm)
Below are different grade for tungsten carbide roll rings
Grade | WC % | CO+Ni+Cr % | Density (g/cm3) | Hardness (HRA) | Compressive Strength Mpa |
YGM30 | 15 | 85 | 14.20 | 84.50 | 3100 |
YGM45 | 20 | 80 | 13.50 | 81.50 | 3000 |
YGM55 | 25 | 75 | 13.20 | 80.00 | 2800 |
YGM60 | 30 | 70 | 12.70 | 79.50 | 2600 |
