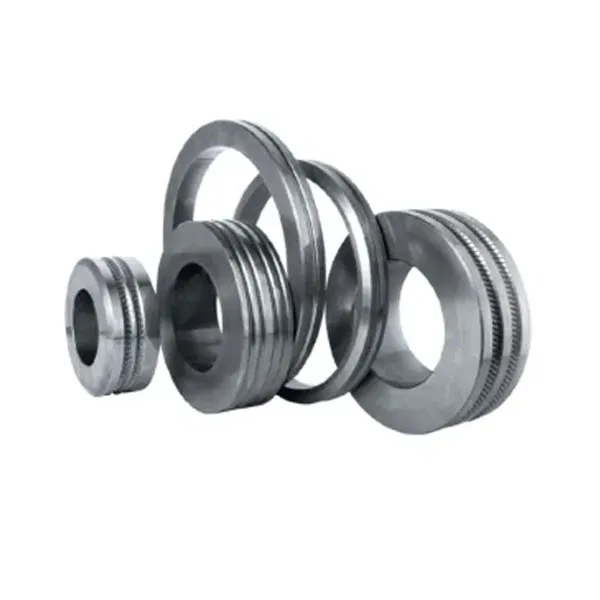

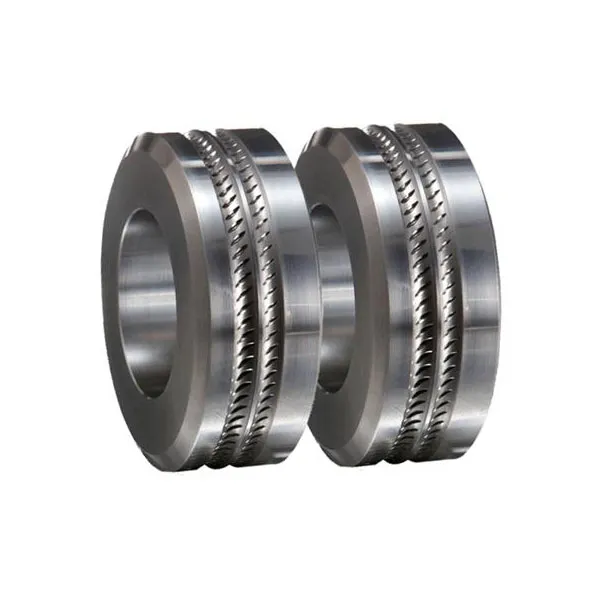

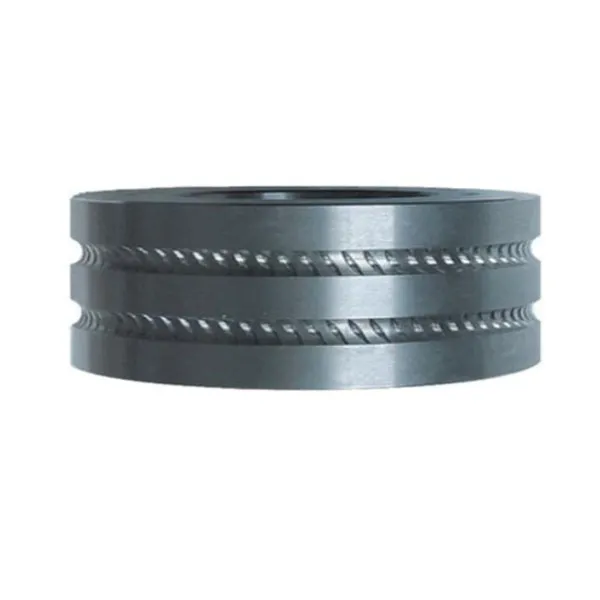

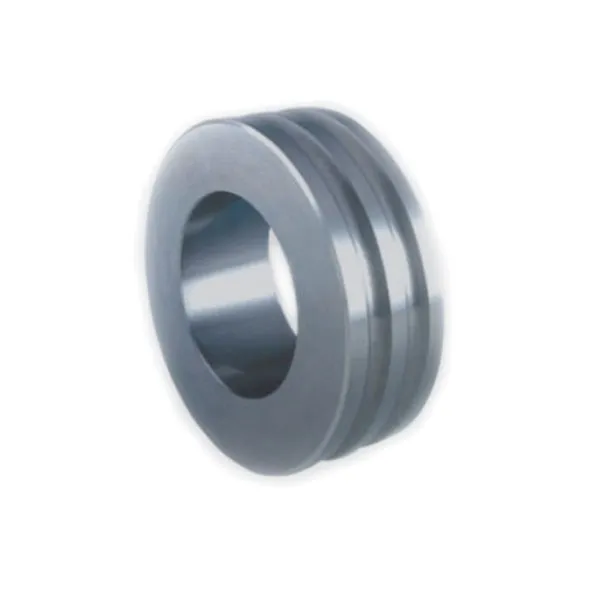

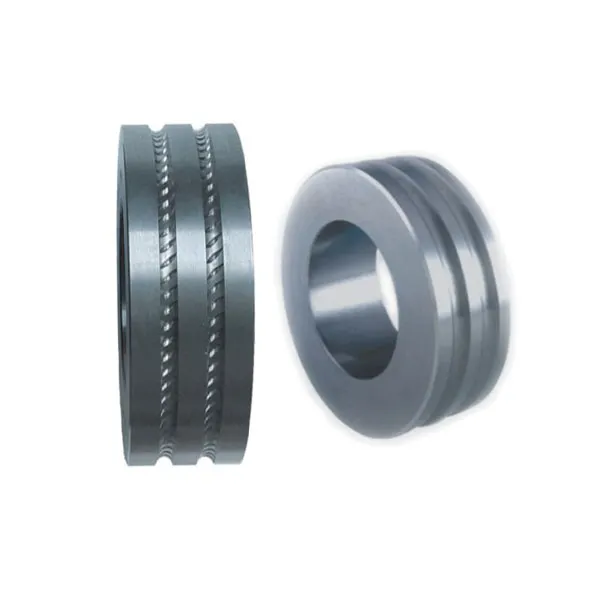

Hot Rolling Tungsten Carbide Roll Rings For Rolling Concrete Reinforcement Steel Bars
Hot Rolling Tungsten Carbide Roll Rings For Rolling Concrete Reinforcement Steel Bars
Material grade details of tungsten carbide hot rolls:
Grade | Chemical composition | Mechanical properties | Physical properties | |||||
Co+Ni % | WC % | Hardness HRA | Transverse rupture strength(Sample B)MPa | Compressive Strength MPa | Young's modulus of elasticity KN/mm2 | Density g/cm3 | Thermal conductivity Cal/cm sec/℃ | |
YGH20 | 10 | 90 | ≥86.0 | ≥2500 | 3500 | 560 | 14.2~14.5 | 0.2 |
YGH25 | 12 | 88 | ≥84.0 | ≥2300 | 3400 | 550 | 14.0~14.3 | 0.21 |
YGH30 | 15 | 85 | ≥83.5 | ≥2520 | 3300 | 540 | 13.8~14.2 | 0.2 |
YGH40 | 18 | 82 | ≥83.0 | ≥2570 | 3200 | 500 | 13.4~13.9 | 0.19 |
YGH45 | 20 | 80 | ≥82.0 | ≥2570 | 3100 | 480 | 13.3~13.9 | 0.18 |
YGH55 | 26 | 74 | ≥81.0 | ≥2570 | 3000 | 450 | 12.6~13.2 | 0.17 |
YGR20 | 10 | 90 | ≥85.0 | ≥2400 | 3400 | 550 | 14.2~14.8 | 0.2 |
YGR25 | 12.5 | 87.5 | ≥83.0 | ≥2270 | 3300 | 540 | 14.0~14.3 | 0.22 |
YGR30 | 15 | 85 | ≥83.0 | ≥2360 | 3200 | 530 | 13.8~14.3 | 0.2 |
YGR40 | 18 | 82 | ≥82.0 | ≥2400 | 3200 | 430 | 13.5~13.9 | 0.2 |
YGR45 | 20 | 80 | ≥80.5 | ≥2250 | 3000 | 480 | 13.4~13.9 | 0.18 |
YGR55 | 25 | 75 | ≥79.0 | ≥2400 | 2800 | 420 | 12.9~13.40 | 0.17 |
YGR60 | 30 | 70 | ≥78.5 | ≥2200 | 2600 | 300 | 12.6~13.1 | 0.16 |

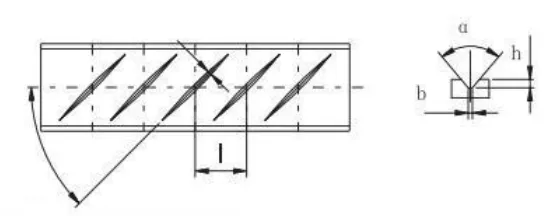

Steel Specifications | Transverse Ribsh Height h | Transverse Ribs Width b | Rib space l | α |
Φ6 | 0.7 | 0.35 | 4 | 70° 80° |
Φ6.5 | 0.7 | 0.35 | 4 | |
Φ8 | 0.9 | 0.4 | 5.5 | |
Φ10 | 1.15 | 0.45 | 7 | |
Φ12 | 1.35 | 0.45 | 8 | |
Φ14 | 1.55 | 0.5 | 9 | |
Φ16 | 1.75 | 0.65 | 10 |
We could also produce under your requirements.
