PCD wire drawing dies applied to a variety of industries, implemented as drawing tools for soft wire products (copper and aluminum wire), as well as hard wire products (stainless steel, etc)
PCD Wire Drawing Dies Diamond Drawing Dies
Polycrystalline diamond (PCD) sintered under high temperature and high pressure together with binder alloy is used. Diamond drawing dies of high and consistent quality covering small to large diameters exhibit outstanding performance in larger size areas than single crystal diamond drawing dies.
Soft wire products: Copper wire, aluminum wire, brass wire, gold wire, etc.
Hard wire products: Stainless steel wire, brass plated steel wire, galvanized steel wire, copper plated steel wire, tungsten wire, molybdenum wire, etc.
Technical Data
| Bore mm | Case Size (OD×H) | |
| OD mm | H mm | |
| 0.25-0.50 | 25 | 8 |
| 0.10-0.80 | 25 | 10 |
| 0.5-1.50 | 25 | 10 |
| 1.00-2.30 | 28 | 12 |
| 1.60-3.40 | 30 | 15 |
| 2.60-4.60 | 30 | 15 |
| 3.00-5.80 | 42 | 20 |
| 4.00-11.20 | 55 | 24 |
| 6.00-12.50 | 60 | 28 |
| 8.00-13.50 | 70 | 35 |
| 12.00-18.00 | 70 | 35 |

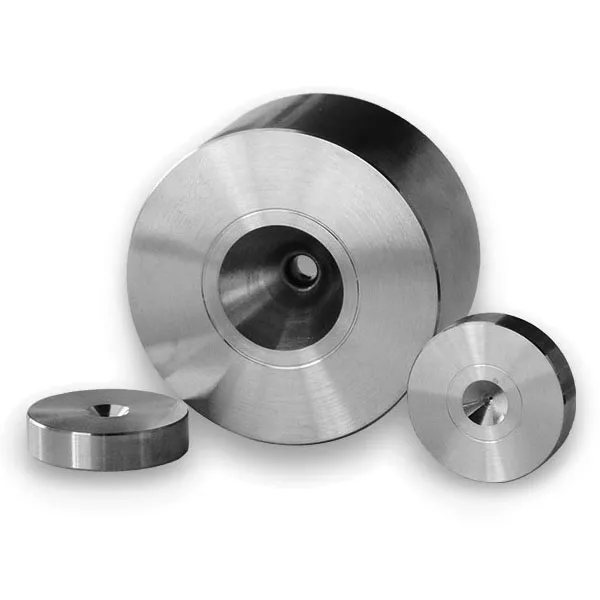

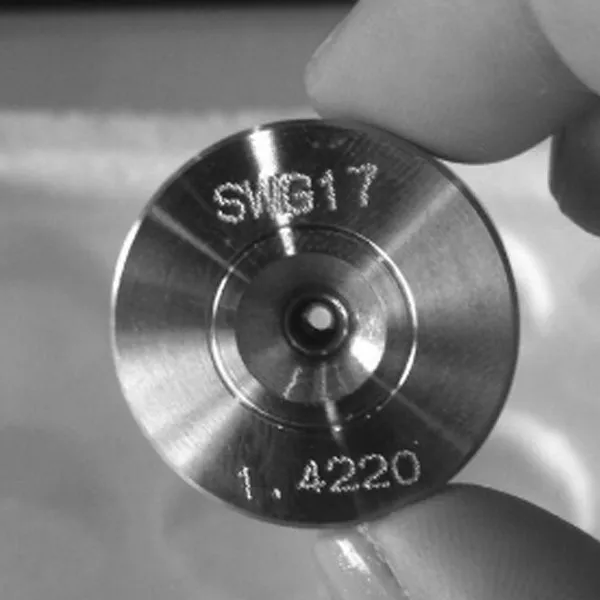

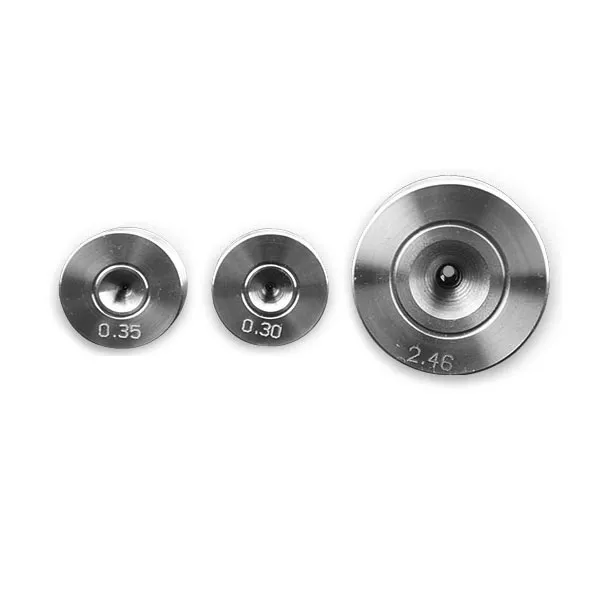

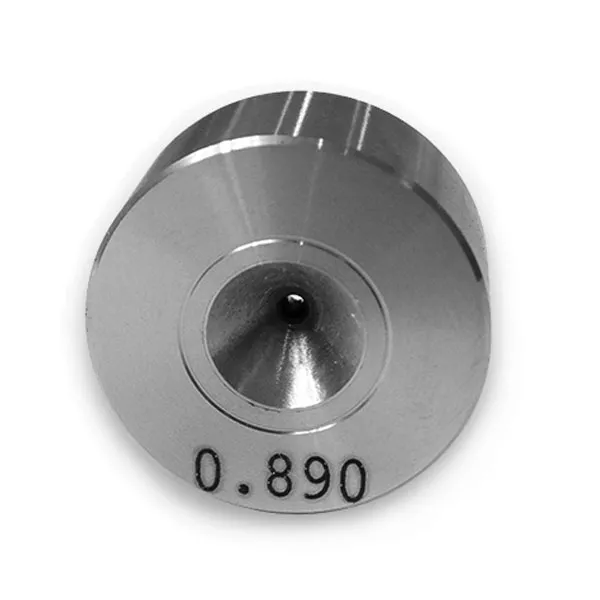

Photos of PCD wire drawing dies:
