PCD drawing die has long drawing life, widely applicated in drawing soft metal wire, such as copper and aluminum wire.
Wear Resistance PCD Drawing Die For Drawing Soft Metal Wire
Polycrystalline diamond (PCD) sintered under high temperature and high pressure together with binder alloy is used. Diamond drawing dies of high and consistent quality covering small to large diameters exhibit outstanding performance in larger size areas than single crystal diamond drawing dies.
Soft wire products: Copper wire, aluminum wire, brass wire, gold wire, etc.
Technical Data
| Item | Hole(mm) | Case(mm) | Usage | PCD size |
| PCD drawing die | 0.1-0.5 | 25*12 | Soft metal wire | 2510 |
| PCD drawing die | 0.501-1.000 | 25*12 | Soft metal wire | 3215 |
| PCD drawing die | 1.101-1.500 | 25*12 | Soft metal wire | 5225 |
| PCD drawing die | 1.501-1.700 | 25*12 | Soft metal wire | 5235 |
| PCD drawing die | 1.701-2.100 | 25*12 | Soft metal wire | 6040 |
| PCD drawing die | 2.101-2.800 | 30*15 | Soft metal wire | 8040 |
| PCD drawing die | 2.801-3.000 | 30*15 | Soft metal wire | 9853 |
| PCD drawing die | 3.001-3.300 | 30*15/35*15/42*25 | Soft metal wire | 10*6 |
| PCD drawing die | 3.301-3.500 | 30*15/35*15/42*25 | Soft metal wire | 12*6 |
| PCD drawing die | 3.501-4.000 | 35*15/40*20/45*25 | Soft metal wire | 13*8 |
| PCD drawing die | 4.001-5.000 | 35*20/40*22/45*25 | Soft metal wire | 14* |
| PCD drawing die | 5.001-6.000 | 40*22/40*25/50*27 | Soft metal wire | 16*10 |
| PCD drawing die | 6.601-7.000 | 40*25/45*25/50*27 | Soft metal wire | 18*10 |
| PCD drawing die | 7.001-7.500 | 50*27 | Soft metal wire | 20*10 |
| PCD drawing die | 7.501-8.500 | 50*27 | Soft metal wire | 22*10 |

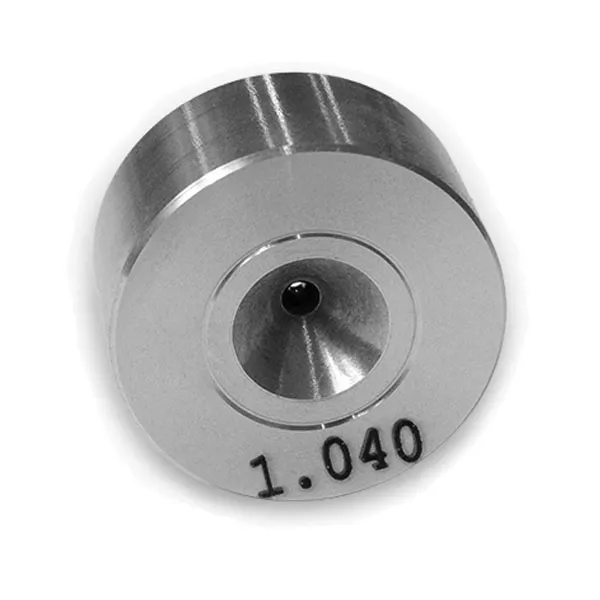

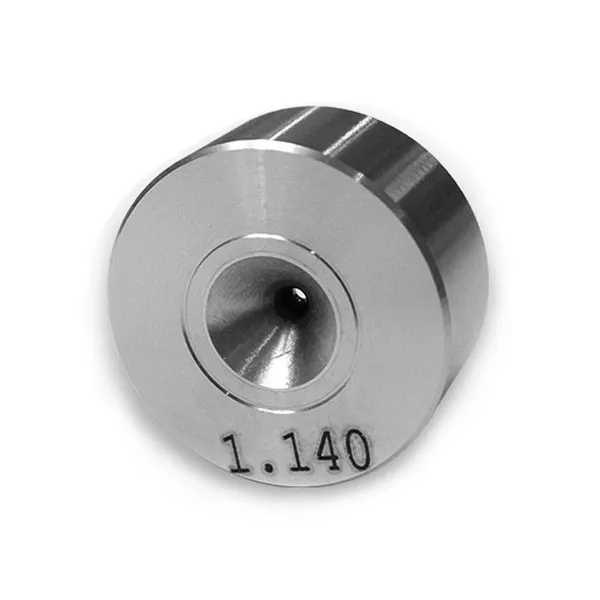

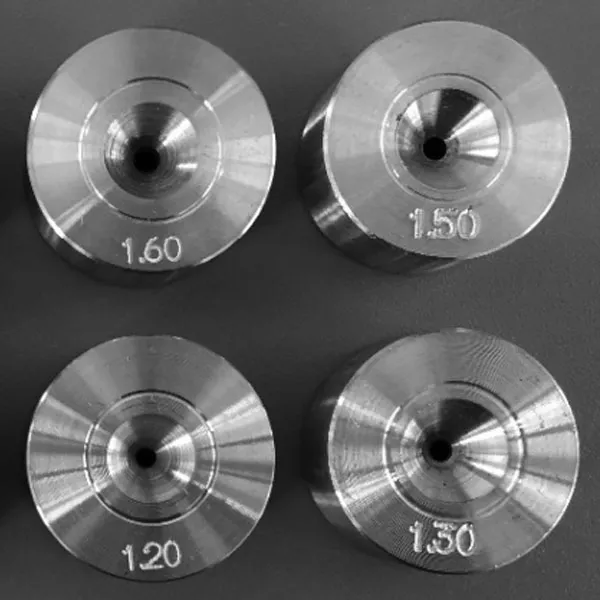

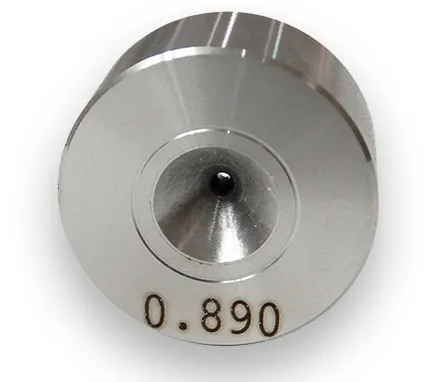

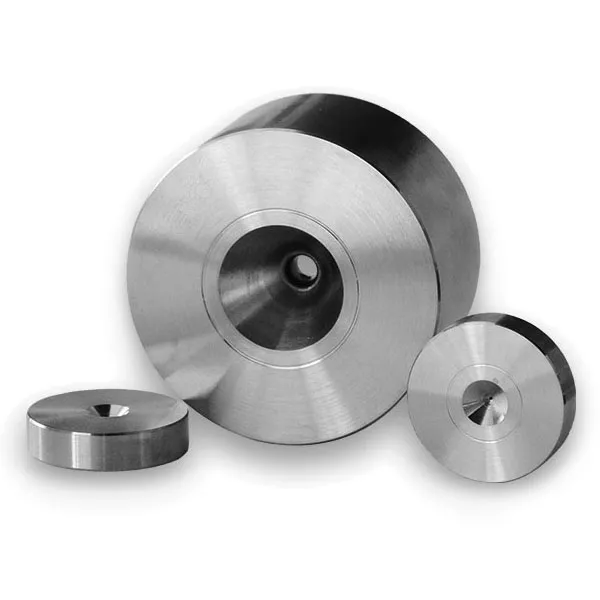

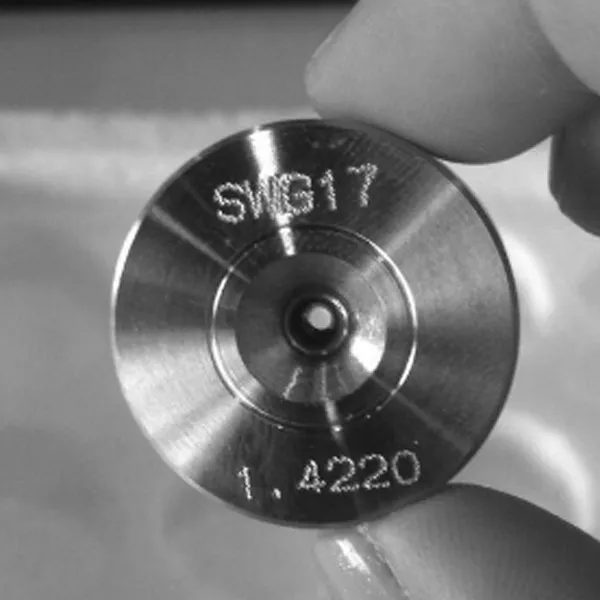

Photos of PCD wire drawing dies:
