PCD wire drawing dies are ideal for drawing abrasive metal wire with long production runs.
PCD Wire Drawing Dies China Factory Wholesales
Polycrystalline diamond (PCD) sintered under high temperature and high pressure together with binder alloy is used. Diamond drawing dies of high and consistent quality covering small to large diameters exhibit outstanding performance in larger size areas than single crystal diamond drawing dies.
PCD drawing dies can be used in ferrous and non-ferrous wire drawing applications, including copper, aluminum, electromagnetic wire and stainless steel.
Technical Data of PCD wire drawing dies
| Item | Hole(mm) | Case(mm) | Grit(um) | Usage | PCD size |
| PCD wire drawing die | 0.100-0.300 | 25*12 | 5-10 | metal wire | 2510 |
| PCD wire drawing die | 0.301-0.500 | 25*12 | 5-10 | metal wire | 2510 |
| PCD wire drawing die | 0.501-1.000 | 25*12 | 5-10 | metal wire | 3215 |
| PCD wire drawing die | 1.001-1.200 | 25*12 | 5-10 | metal wire | 4020 |
| PCD wire drawing die | 1.201-1.500 | 25*12 | 5-10 | metal wire | 5225 |
| PCD wire drawing die | 1.501-1.700 | 28*12 | 5-10 | metal wire | 5235 |
| PCD wire drawing die | 1.701-1.900 | 28*12 | 5-10 | metal wire | 5235 |
| PCD wire drawing die | 1.901-2.100 | 28*12 | 5-10 | metal wire | 6040 |
| PCD wire drawing die | 2.101-2.300 | 28*12 | 5-10 | metal wire | 6040 |
| PCD wire drawing die | 2.301-2.500 | 30*15 | 5-10 | metal wire | 6040 |
| PCD wire drawing die | 2.501-2.800 | 30*15 | 5-10 | metal wire | 6040 |
| PCD wire drawing die | 2.801-3.000 | 30*15 | 5-10 | metal wire | 6040 |
| PCD wire drawing die | 3.001-3.300 | 30*15 | 5-10 | metal wire | 7040 |
| PCD wire drawing die | 3.301-3.500 | 30*15 | 5-10 | metal wire | 8040 |
| PCD wire drawing die | 3.501-3.800 | 40*25 | 5-10 | metal wire | 10*6 |
| PCD wire drawing die | 3.801-4.500 | 40*25 | 5-10 | metal wire | 13*8 |
| PCD wire drawing die | 4.501-5.000 | 40*25 | 5-10 | metal wire | 14*10 |
| PCD wire drawing die | 5.001-5.500 | 40*25 | 5-10 | metal wire | 14*10 |
| PCD wire drawing die | 5.501-6.000 | 40*25 | 5-10 | metal wire | 16*10 |
| PCD wire drawing die | 6.001-6.500 | 50*27 | 5-10 | metal wire | 18*10 |
| PCD wire drawing die | 6.501-7.000 | 50*27 | 5-10 | metal wire | 18*10 |

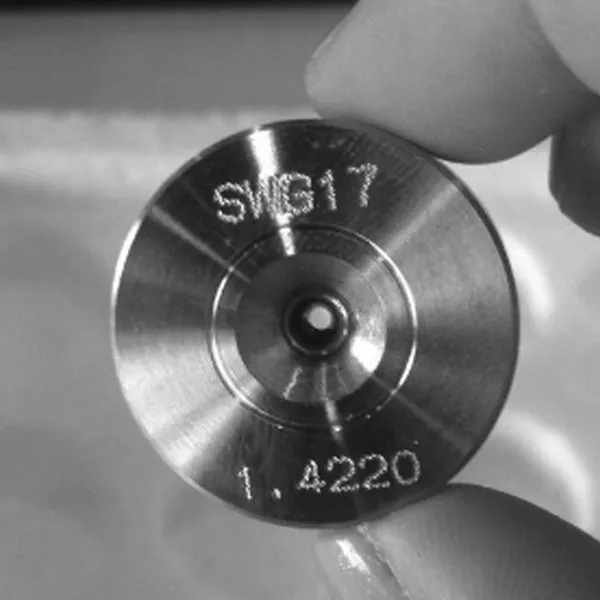

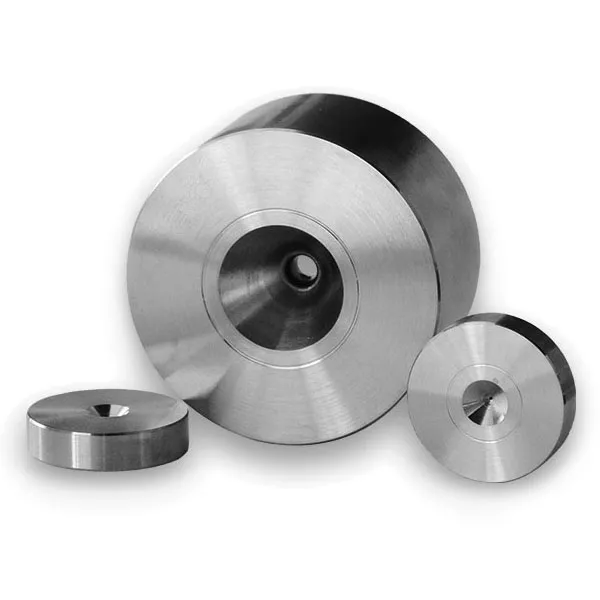

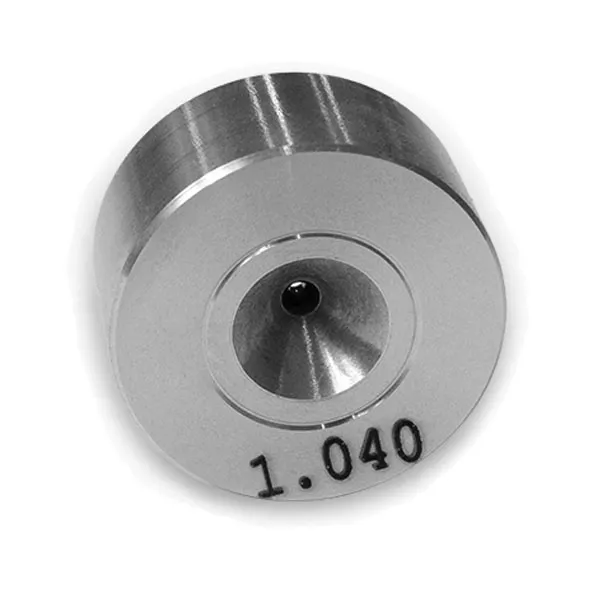

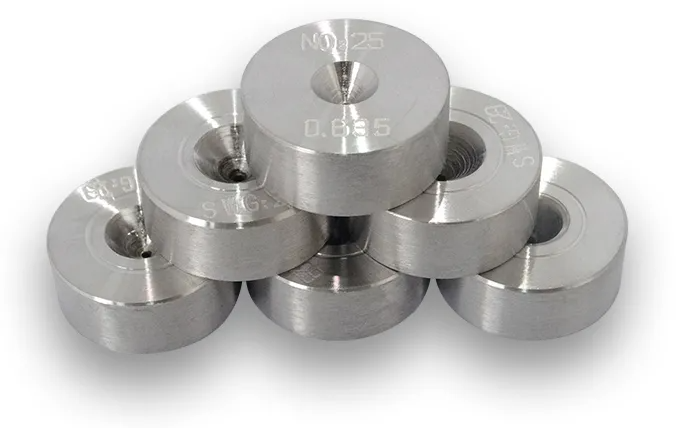

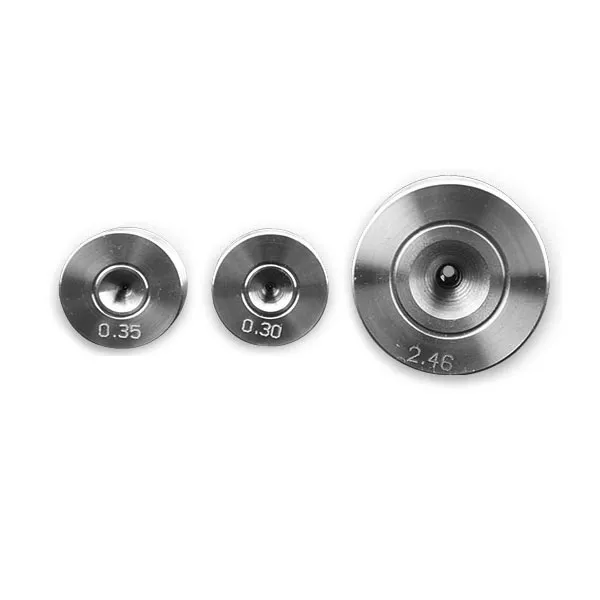

Photos of PCD wire drawing dies:
