Tungsten carbide wire drawing dies are a wise economical choice for steel wire and other large-size wire drawing applications that make cost savings together with wear resistance and wire surface finish.
YG8 Tungsten Carbide Wire Drawing Dies for Wire Drawing
Tungsten carbide drawing nibs type: S11, S12, S13, S22, S23, S30, S40, S41, S42, S60, W.
Max carbide could produce both carbide die nibs and carbide drawing dies with steel case.
| Grade | Physical and mechanical properties | Applications recommended | ||
| Grade | Density g/cm3 | Hardness ( No less than HRA ) | TRS ( No less than Mpa ) | |
| YG6X (K10) | 14.8-15.1 | 91 | 1490 | For drawing steel and nonferrous wires or bars of less than Dia. 6.00 mm under not so much stress. |
| YG6 (K20) | 14.7-15.1 | 89.5 | 1650 | For drawing steel , nonferrous alloy bars of less than Dia. 20.00 mm under more stuess and also for drawing tubes of less than Dia. 10.00 mm. |
| YG8 (K30) | 14.6-14.9 | 89 | 1800 | For drawing steel and nonferrous bars and tubes, Also for manufacturing mechanical parts, tools and wear parts. |
| YG15 | 13.9-14.2 | 86.5 | 2060 | For drawing steel bars and tubes with a high reduction rate and for manufacturing anvils, drinning and punching and impacting dies. |
Tungsten carbide wire drawing dies mainly for ferrous and non-ferrous metal drawing to required size of bar, wire and rods. it is much longer life the steel mould. we can also offer PCD drawing die too.

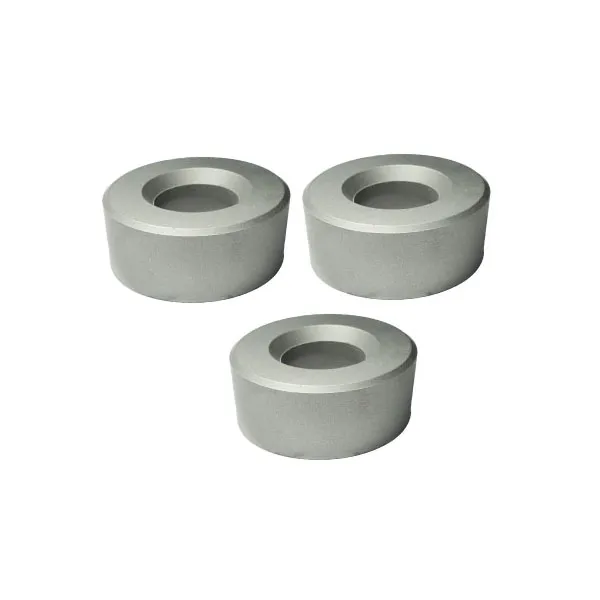

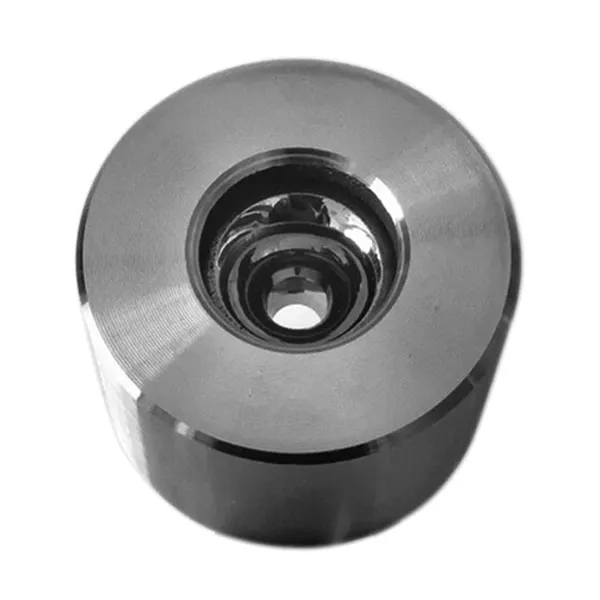

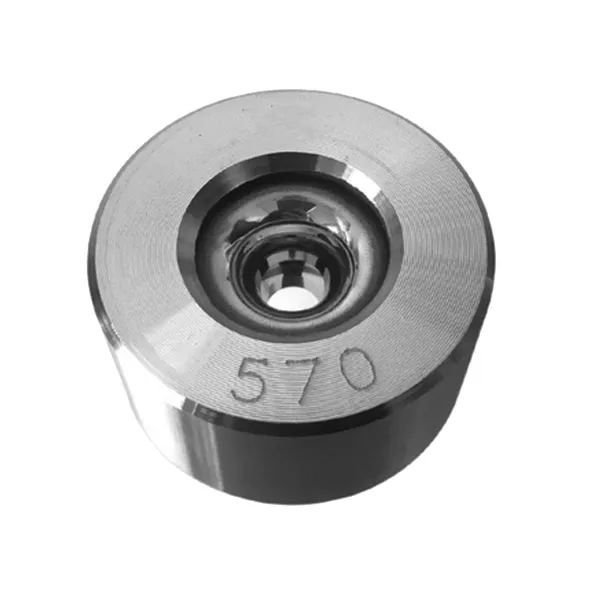

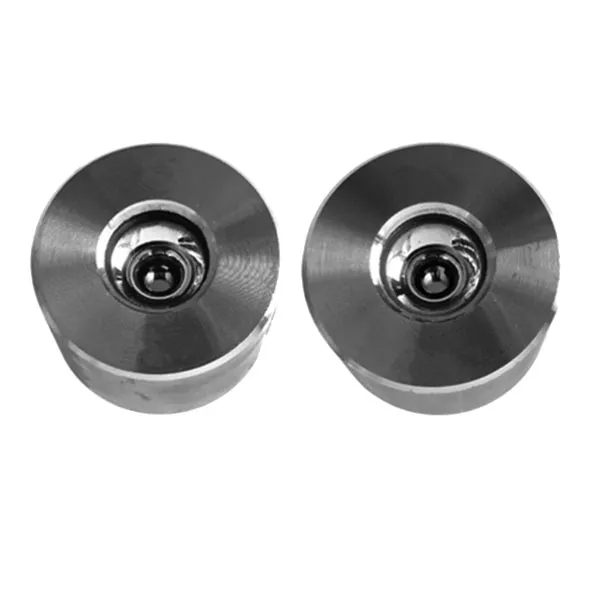

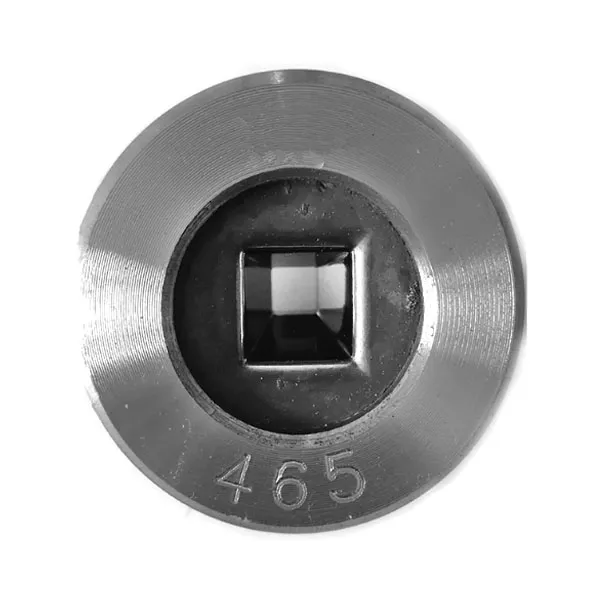

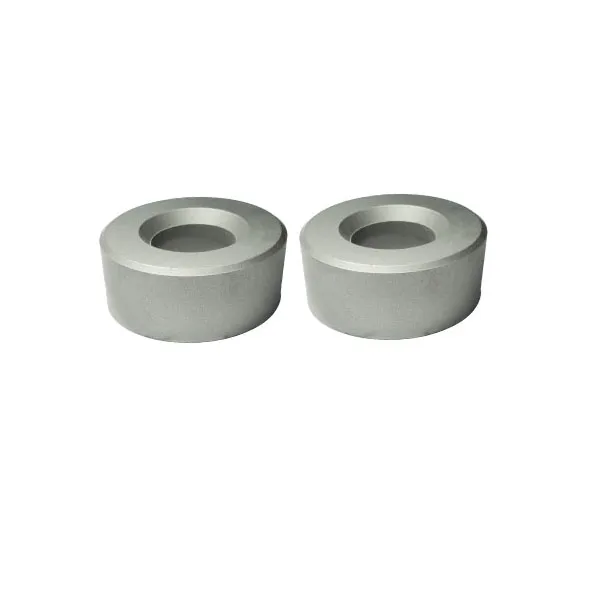

Photos of tungsten carbide wire drawing nibs and dies:
