Tungsten carbide wire drawing dies is a cost effective solution for a wide variety of metal wire processing applications.
Tungsten Carbide Wire Drawing Dies China Manufacturer
Tungsten carbide drawing nibs type: S11, S12, S13, S22, S23, S30, S40, S41, S42, S60, W.
Max carbide could produce both carbide die nibs and carbide drawing dies with steel case.
| Grade | Physical and mechanical properties | Applications recommended | ||
| Grade | Density g/cm3 | Hardness ( No less than HRA ) | TRS ( No less than Mpa ) | |
| YG6X (K10) | 14.8-15.1 | 91 | 1490 | For drawing steel and nonferrous wires or bars of less than Dia. 6.00 mm under not so much stress. |
| YG6 (K20) | 14.7-15.1 | 89.5 | 1650 | For drawing steel , nonferrous alloy bars of less than Dia. 20.00 mm under more stuess and also for drawing tubes of less than Dia. 10.00 mm. |
| YG8 (K30) | 14.6-14.9 | 89 | 1800 | For drawing steel and nonferrous bars and tubes, Also for manufacturing mechanical parts, tools and wear parts. |
| YG15 | 13.9-14.2 | 86.5 | 2060 | For drawing steel bars and tubes with a high reduction rate and for manufacturing anvils, drinning and punching and impacting dies. |
Tungsten carbide drawing dies used for drawing many different metal material like mild steel, high carbon, stainless steel, brass, aluminum and so on. Tungsten carbide drawing dies of ours could ensure long time high surface roughness for high speed roughness for high-speed drawn steel wire, tungsten wire, molybdenum wire, tantalum wire and copper wire.

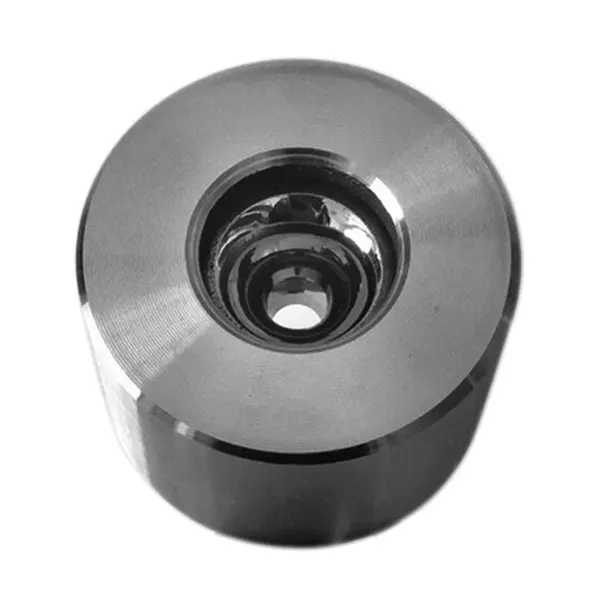

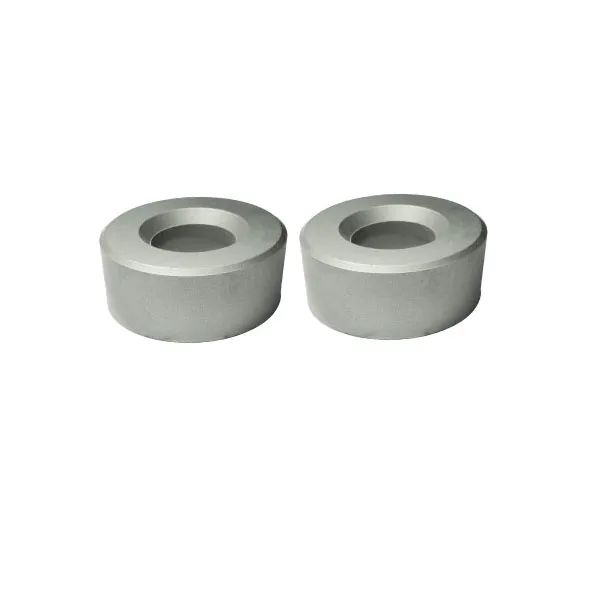

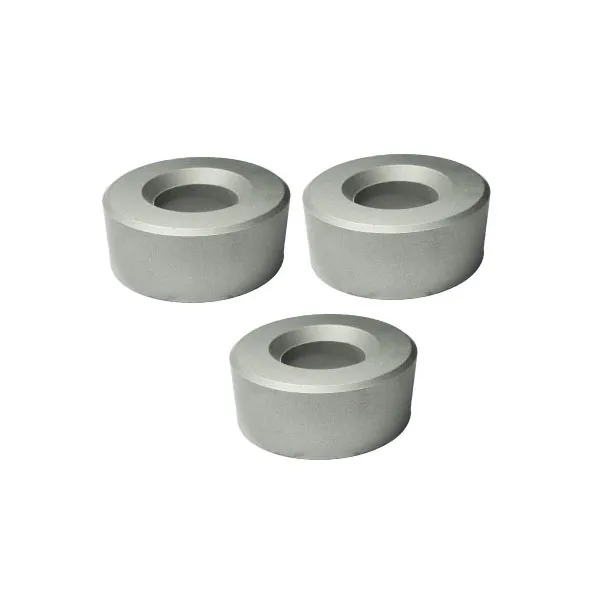

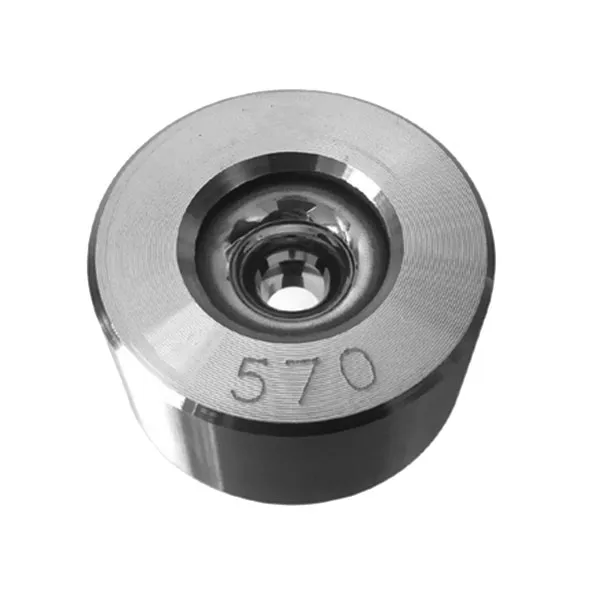

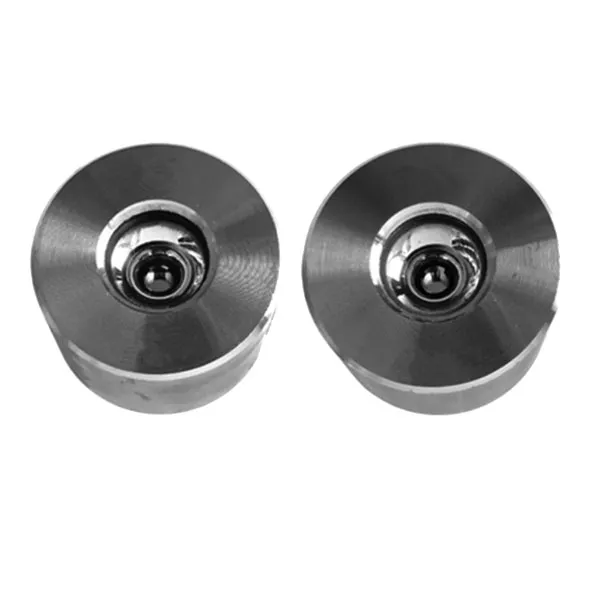

Photos of tungsten carbide wire drawing nibs and dies:
