Max carbide produce good quality tungsten carbide waterjet nozzles, focusing tubes for for Kmt/ Flow/ Accustream/ Omax/ Dardi cutting head.

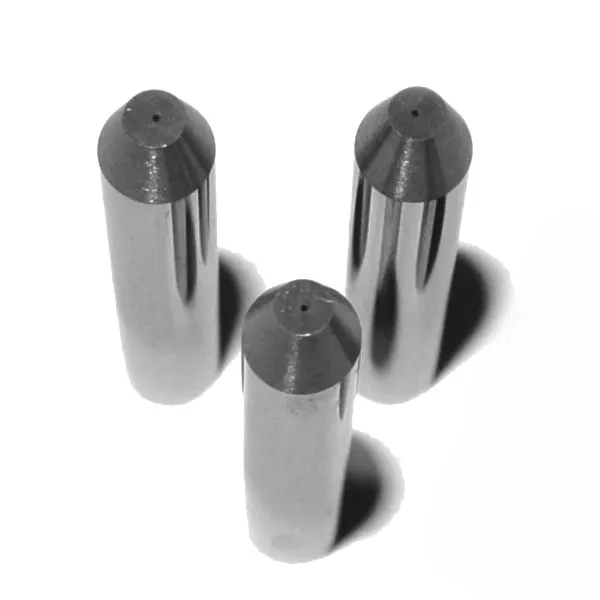

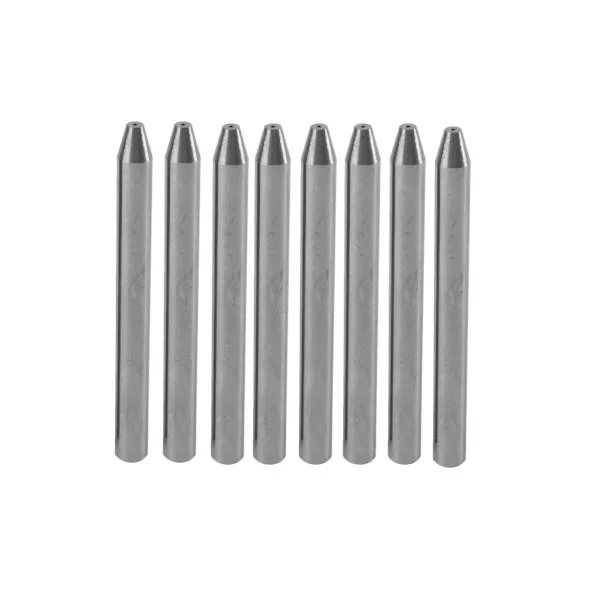

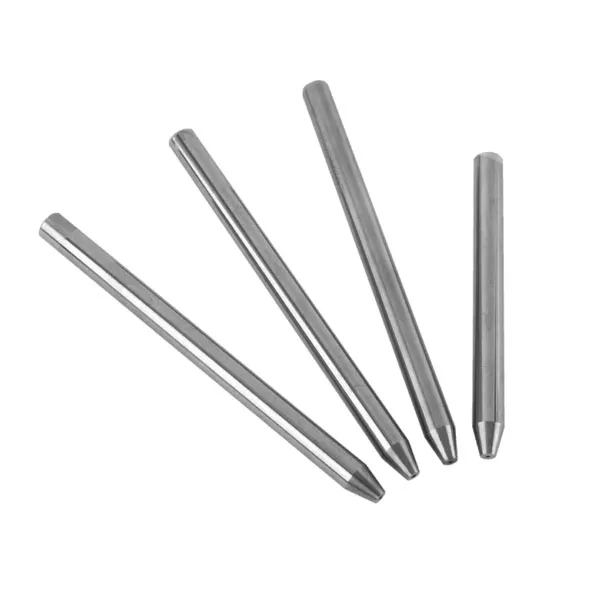

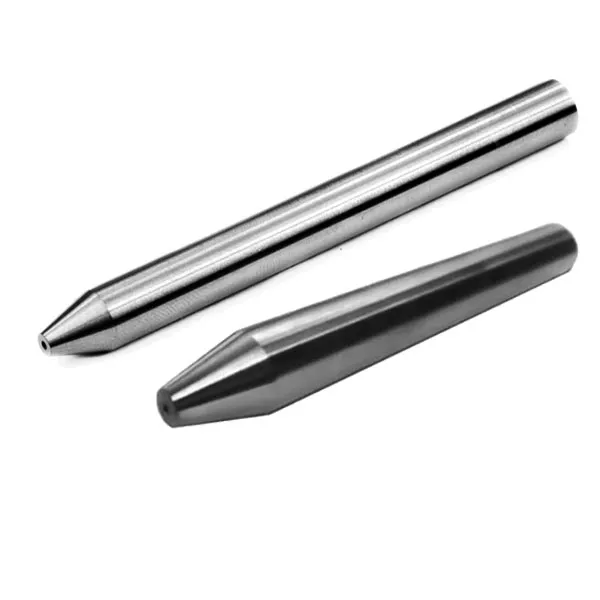

Tungsten Carbide Nozzle Waterjet For Focusing Tube

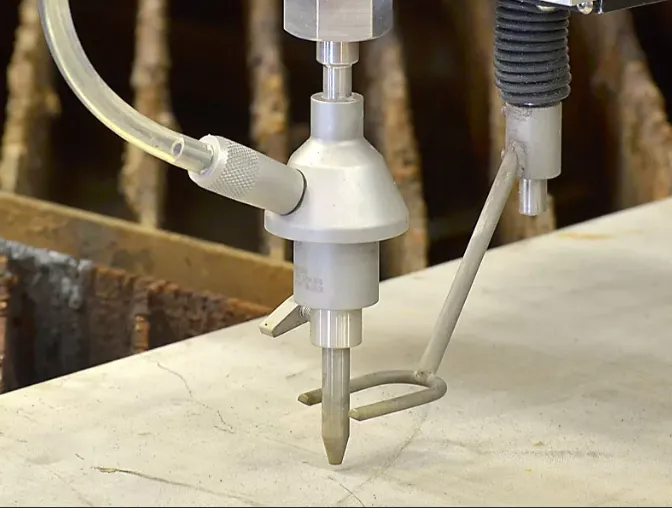

Tungsten carbide nozzle waterjet, focusing tube, water spray nozzles use an ultra high power water jet with an added abrasive agent to cut materials with pinpoint accuracy.
(1) Unique advantage of tungsten carbide waterjet nozzle
1. Adopt supermicron grain size, which can result in better wear-reseistance and longer life span.
2. Content of cobalt: below 0.6%.
3. Super oxygen-resistant
4. Using HIP sintering which can increase the performance of carbide greatly.
5. Precision Ground and polished
(2)Physic character of tungsten carbide waterjet nozzle
1. Long life span: 80 hrs for finish grinding, 140hrs for rough grinding
2. Density:15.45g/cm3 —15.60 g/cm3
3. Hardness:2000Mpa-2400Mpa
4. the tolerance of polish and ground can be +0.005/-0.005m

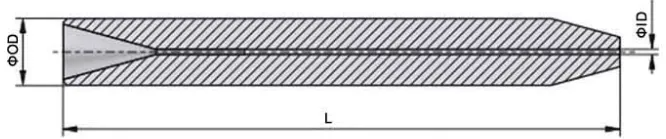

(3) Sizes of tungsten carbide waterjet nozzle
| φOD | φID | L | |||
| mm | inch | mm | inch | mm | inch |
| 6.35 | 0.25 | 0.76 | 0.03 | 76.2 | 3 |
| 6.35 | 0.25 | 1.02 | 0.04 | 76.2 | 3 |
| 6.35 | 0.25 | 1.14 | 0.045 | 76.2 | 3 |
| 6.35 | 0.25 | 1.27 | 0.05 | 76.2 | 3 |
| 6.35 | 0.25 | 1.02 | 0.04 | 101.6 | 4 |
| 6.35 | 0.25 | 1.27 | 0.05 | 101.6 | 4 |
| 7.14 | 0.281 | 0.76 | 0.03 | 76.2 | 3 |
| 7.14 | 0.281 | 1.02 | 0.04 | 76.2 | 3 |
| 7.14 | 0.281 | 0.76 | 0.03 | 101.6 | 4 |
| 7.14 | 0.281 | 1.02 | 0.04 | 101.6 | 4 |
| 7.62 | 3.000 | 0.76 | 0.03 | 76.2 | 3 |
| 7.62 | 3.000 | 1.02 | 0.04 | 76.2 | 3 |
| 8.00 | 0.315 | 0.76 | 0.03 | 101.6 | 4 |
| 8.00 | 0.315 | 1.02 | 0.04 | 101.6 | 4 |
| 9.53 | 0.375 | 0.76 | 0.03 | 76.2 | 3 |
| 9.53 | 0.375 | 1.02 | 0.04 | 76.2 | 3 |
| 9.53 | 0.375 | 0.76 | 0.03 | 101.6 | 4 |
| 9.53 | 0.375 | 1.02 | 0.04 | 101.6 | 4 |
(4) Application of tungsten carbide waterjet nozzle:
1. Metal cutting
2.Ceramic cutting
3.Stone cutting
4.Glass cutting
5. Others
