Tungsten Carbide water jet cutting nozzles,water spray nozzles use an ultra high power water jet with an added abrasive agent to cut materials with pinpoint accuracy.

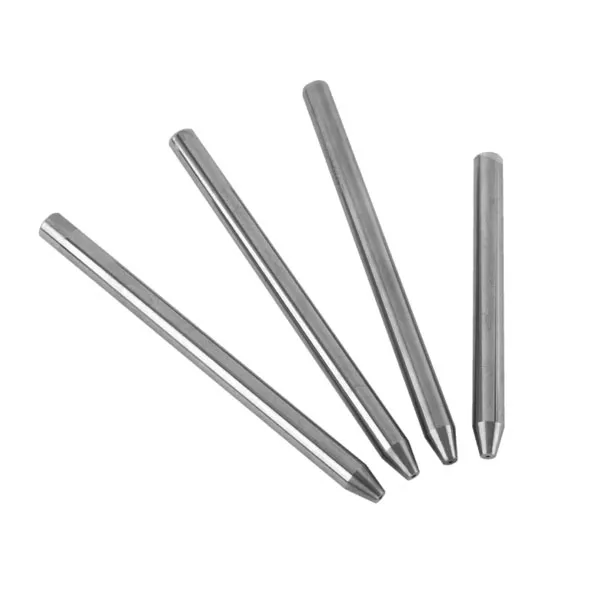

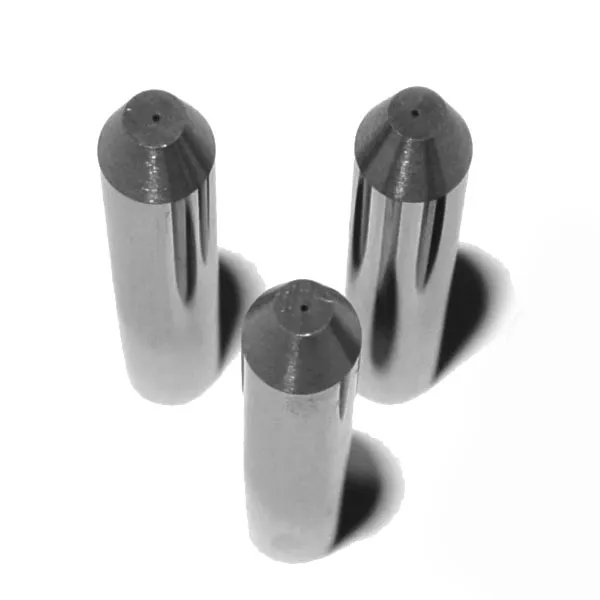

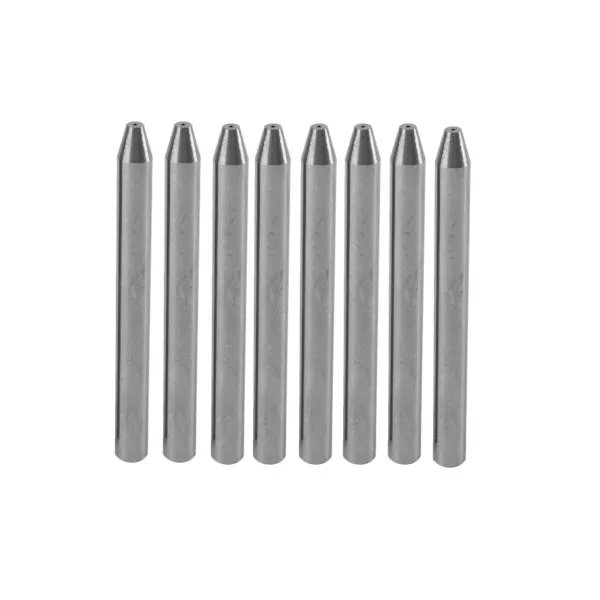

Carbide Water Jet Cutting Nozzles For Waterjet Machine
Carbide water jet cutting nozzles,water spray nozzles use an ultra high power water jet with an added abrasive agent to cut materials with pinpoint accuracy.
(1) Unique advantage of tungsten carbide waterjet nozzle
1. Adopt supermicron grain size, which can result in better wear-reseistance and longer life span.
2. Content of cobalt: below 0.6%.
3. Super oxygen-resistant
4. Using HIP sintering which can increase the performance of carbide greatly.
5. Precision Ground and polished
(2)Physic character of tungsten carbide waterj et nozzle
1. Long life span: 80 hrs for finish grinding, 140hrs for rough grinding
2. Density:15.45g/cm3 —15.60 g/cm3
3. Hardness:2000Mpa-2400Mpa
4. the tolerance of polish and ground can be +0.005/-0.005m

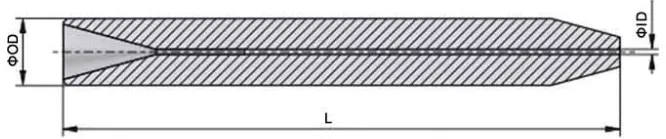

(3) Sizes of carbide water jet nozzle
| OD(mm) | ID(mm) | Length(mm) |
| 6.35 | 0.76 | 76.4 |
| 6.35 | 1.02 | 76.2 |
| 6.35 | 1.02 | 76.4 |
| 6.35 | 1.02 | 101.6 |
| 6.35 | 1.02 | 76.2 |
| 6.35 | 0.76 | 76.2 |
| 7 | 1.02 | 76.2 |
| 7.14 | 0.5 | 76.2 |
| 7.14 | 0.8 | 76.2 |
| 7.14 | 0.76 | 76.2 |
| 7.14 | 0.76 | 101.6 |
| 7.14 | 1.02 | 76.2 |
| 7.14 | 1.02 | 101.6 |
| 7.14 | 1.27 | 76.2 |
| 7.14 | 1.27 | 101.6 |
| 9.4 | 0.76 | 79.5 |

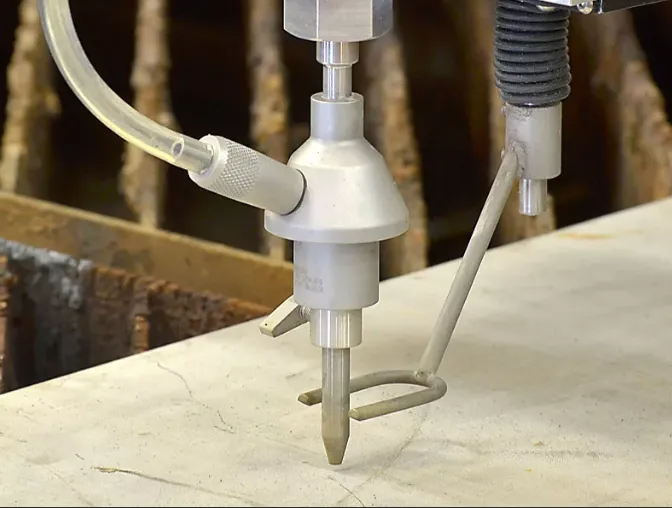

(4) Application of tungsten carbide water jet nozzle:
1. Metal cutting
2.Ceramic cutting
3.Stone cutting
4.Glass cutting
5. Others
