Item No.: 033
WNiFe tungsten alloy sphere boat counterweight could help resist great storms on the sea, and keep the sailing boat steady without damage.
Regular sizes are on stock.

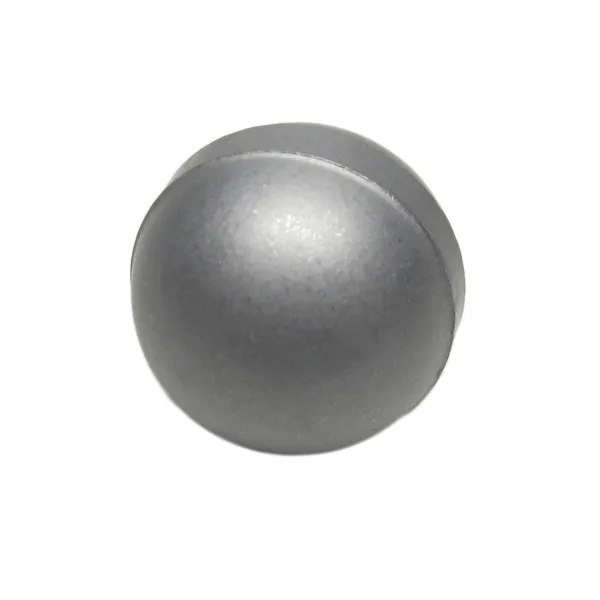

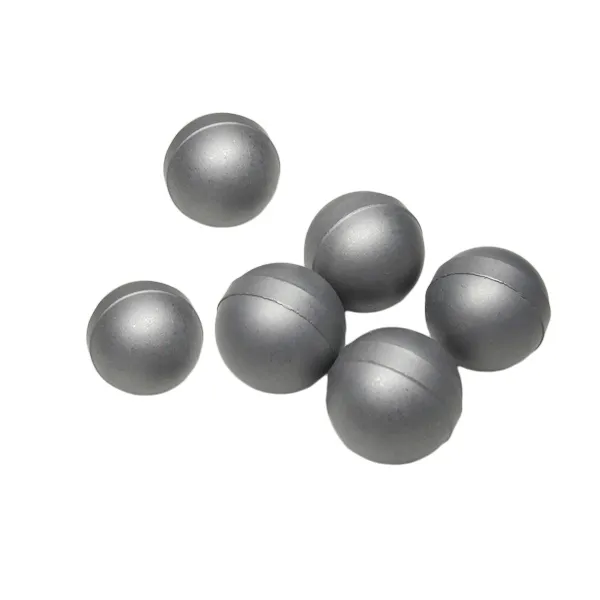

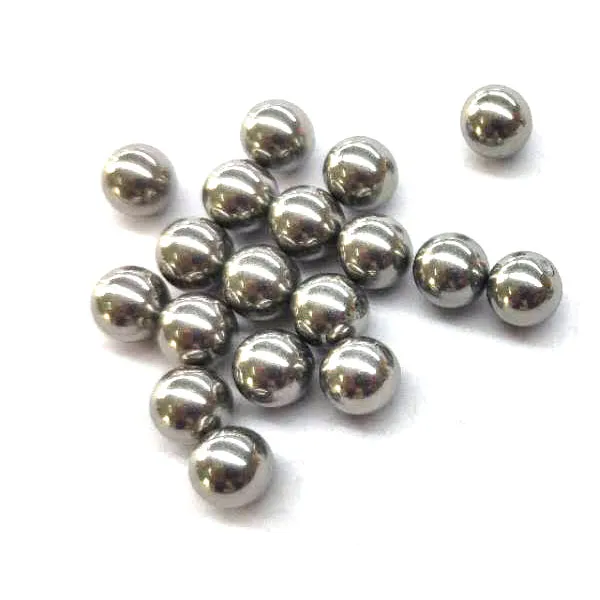

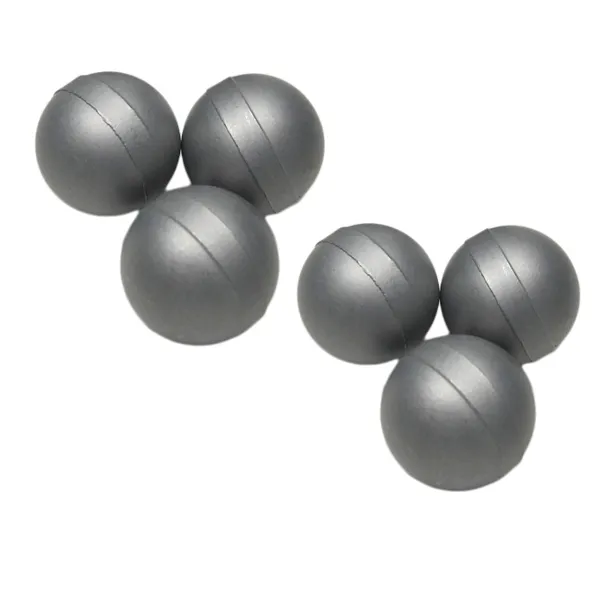

Tungsten Heavy Alloy Sphere boat Counterweight
Advantages of tungsten alloy sphere:
- High density up to 18.5 g/cm3.
- Up to 65% denser than Lead.
- Up to 130% denser than Steel.
- Mechanical properties to suit either dynamic or static locations.
- Weakly Ferro magnetic.
- Non-magnetic, if specifically required.
- Alternative to Lead.
- Non-Toxic.
- Corrosion resistant.
- Easily machined.
- Easily mechanically joined, brazed or shrunk fit to other materials.
Tungsten alloy sphere material Specification details:
| Composition(%) | 90W7Ni3Fe | 93W4Ni3Fe | 95W3Ni2Fe | 97W2Ni1Fe |
| Density(g/cm3) | 17.1+/-0.15 | 17.6+/-0.15 | 18.1+/-0.15 | 18.5+/-0.15 |
| Tensile Strength(MPa) | 900-1000 | 900-1000 | 920-1100 | 920-1100 |
| Elongation(%) | 18-29 | 16-24 | 10-22 | 6-13 |
| Hardness(HRC) | 24-28 | 26-30 | 27-32 | 28-36 |
95WNiFe/WNiCu tungsten alloy sphere size & weight table
| Diameter mm | Denstity g/cm³ | Gram g |
| 2 | 18 | 0.075 |
| 2.5 | 18 | 0.147 |
| 3 | 18 | 0.254 |
| 3.5 | 18 | 0.404 |
| 4 | 18 | 0.603 |
| 4.5 | 18 | 0.859 |
| 5 | 18 | 1.178 |
| 5.5 | 18 | 1.567 |
| 6 | 18 | 2.035 |
| 6.5 | 18 | 2.587 |
| 7 | 18 | 3.231 |
| 7.5 | 18 | 3.975 |
| 8 | 18 | 4.824 |
| 8.5 | 18 | 5.786 |
| 9 | 18 | 6.868 |
| 9.5 | 18 | 8.078 |
| 10 | 18 | 9.421 |
| 12 | 18 | 16.28 |
