Tungsten carbide flow cage in a wide variety of configurations and specifications for use in wear corrosive and erosive conditions like oil and gas industry.

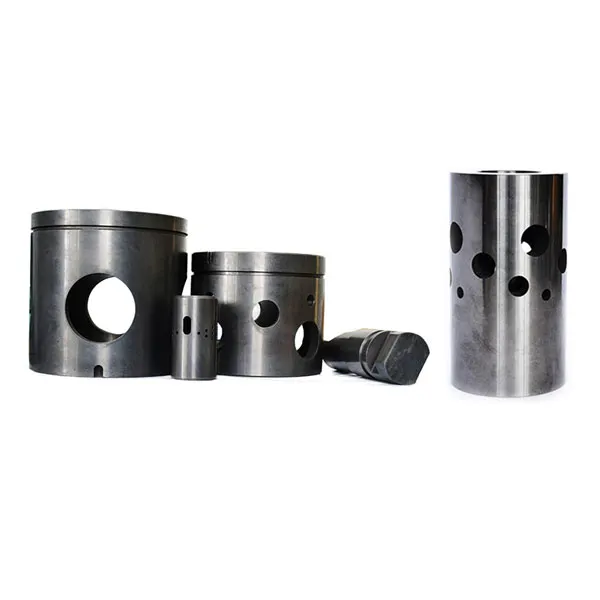

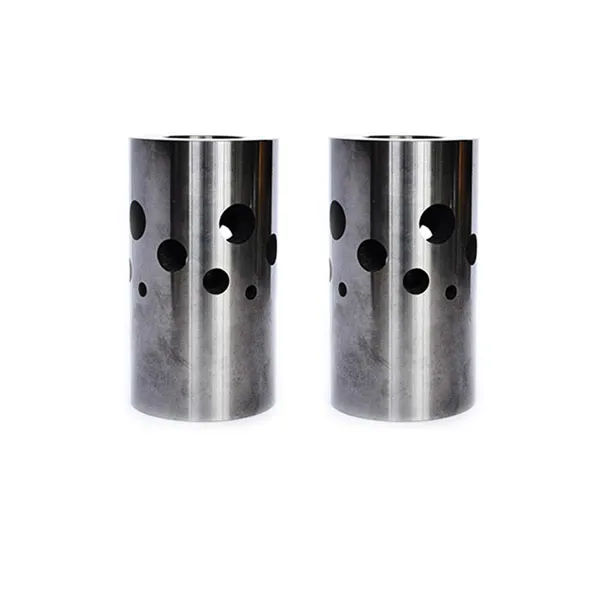

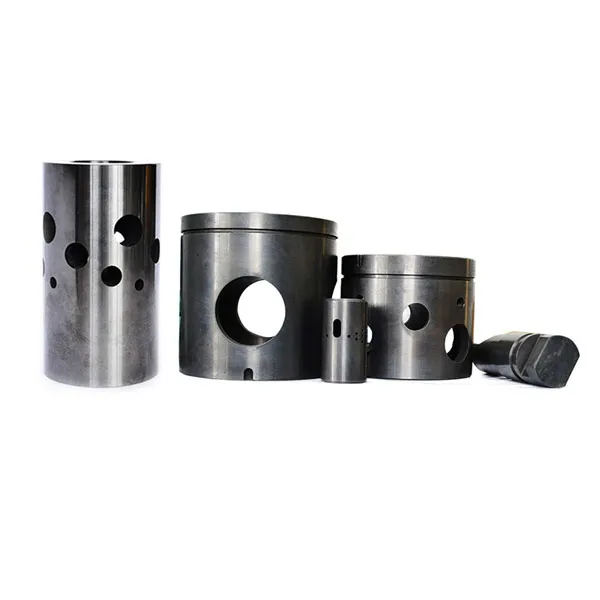

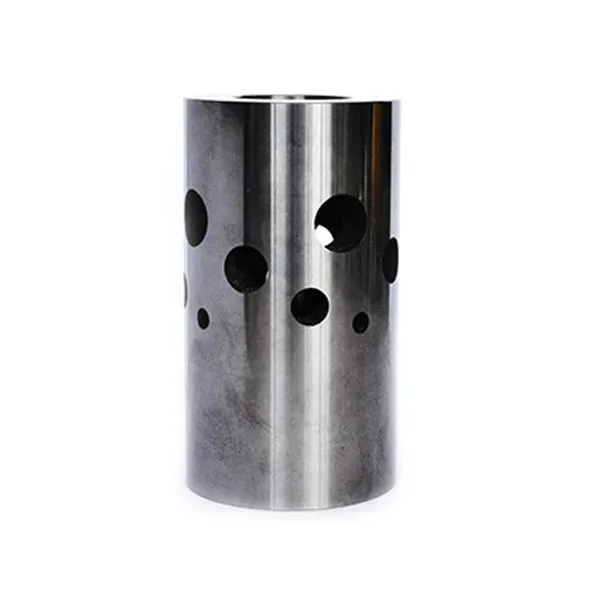

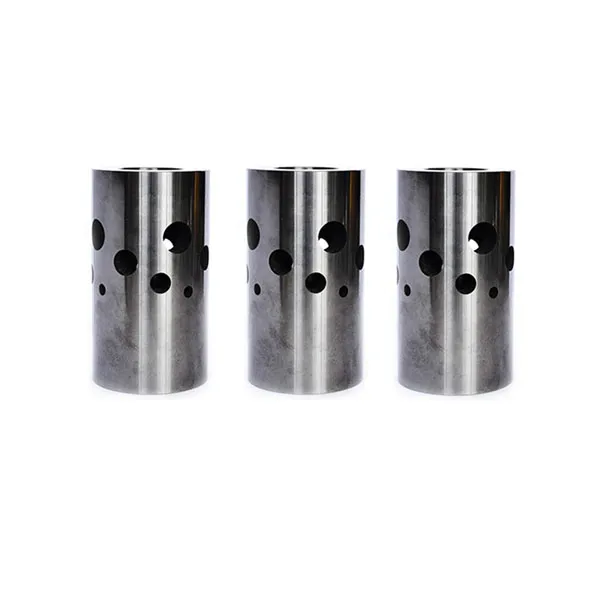

Tungsten carbide flow cages for valve parts in oil and gas industry
We are producing tungsten carbide flow cage ( carbide flow control cage )for valves in oil and gas industries. Tungsten carbide flow cage provided by us is accurately designed with a diameter hole for easy transfer of gases and petroleum fluids. Robust structure and effectual functioning are the prime reasons for high demand of flow cage that we dispatch in the markets.
Material grade details of tungsten carbide flow cage:
Cobalt Binder Grades:
| Grade | Binder (Wt%) | Density (g/cm3) | Hardness (HRA) | TRS (>=N/mm²) |
| YG6 | 6 | 14.8 | 90 | 1520 |
| YG6X | 6 | 14.9 | 91 | 1450 |
| YG6A | 6 | 14.9 | 92 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88 | 1810 |
| YG15 | 15 | 14 | 87 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84 | 2550 |
Nickel Binder Grades:
| Grade | Binder (Wt%) | Density (g/cm3) | Hardness (HRA) | TRS (>=N/mm²) |
| YN6 | 6 | 14.7 | 89.5 | 1460 |
| YN6X | 6 | 14.8 | 90.5 | 1400 |
| YN6A | 6 | 14.8 | 91 | 1480 |
| YN8 | 8 | 14.6 | 88.5 | 1710 |
Other material could be produced under your requirements.
Sizes of tungsten carbide flow cages produce under your drawing.
